Front Suspension

Tower Brace

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1331)

Remove the Tower Brace and Additional Reinforcement

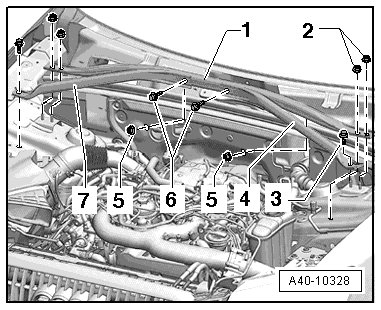

- Remove the nuts - 2 -, - 5 - and the right and left bolts - 3 - and then remove the tower brace - 1 -.

Remove the Right or Left Additional Reinforcements






- Remove the bolt - 3 - and - 6 - from the additional reinforcement being removed and then remove the reinforcement - 4 - or - 7 -.

Installing

Install in reverse order of removal. Note the following:

Tightening specifications, refer to => [ Suspension Strut with Bracket, Shock Absorber, Upper Control Arm and Tower Brace Assembly Overview ] Suspension Strut With Bracket, Shock Absorber, Upper Control Arm and Tower Brace Assembly Overview.
