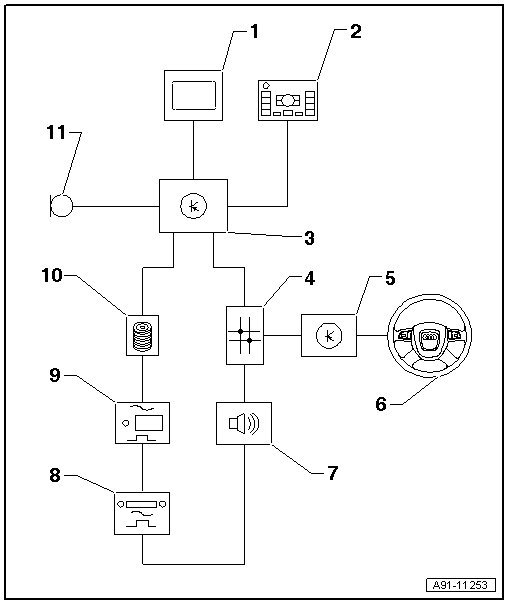

Speech Control System MMI Overview

Speech Control System MMI Overview






1 Front Information Display Control Head (J685)

• In the center of the instrument panel

2 Multimedia Control Head (E380)

• In center console, bottom

3 Information Electronics Control Module 1 (J794)

• In the top of the center console

• Connector assignment, refer to => [ Connectors, MMI ] Connectors, MMI

• SDS, Removing and Installing, refer to => [ Voice Control System ] Voice Control System

4 Data Bus On Board Diagnostic Interface (J533)

• Behind the glove compartment on the left side

5 Steering Column Electronic Systems Control Module (J527)

• On steering column at steering column switches

6 Multifunction Steering Wheel

• Removing and installing buttons, refer to => [ Multi-function Buttons ] Multi-function Buttons

7 Digital Sound System Control Module (J525)

• Behind the luggage compartment left side trim

8 Radio (R)

• Behind the luggage compartment left side trim

9 TV Tuner (R78)

• Behind the luggage compartment left side trim

10 CD Changer (R41)

• In glove compartment

11 Microphone Unit in Front Roof Module (R164)

• Overview, refer to => [ Front Roof Module Microphone Unit Overview ] Front Roof Module Microphone Unit Overview
