Television / Monitor: Locations

Component Locations: Radio / Navigation Systems

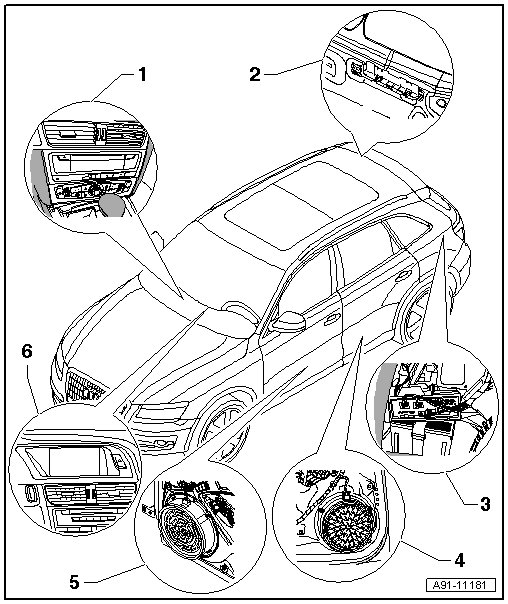

TV System Overview







1 - Information Electronics Control Module 1 -J794-
• Located at the top center console

2 - Antenna Amplifier

3 - TV Tuner -R78-
• Located behind the luggage compartment left side trim

4 - Speakers in Rear Doors

5 - Speakers in Front Doors

6 - Front Information Display Control Head -J685-
• Located in the center of instrument panel
