External Audio Source Connection, AMI

External Audio Source Connection, AMI

The external audio source connection (R199) (AMI) is located in the glove compartment.

Special tools, testers and auxiliary items required

• Radio Removal Tool (T10057)

• Fiber Optic Plier Repair Set (VAS 6223)

• Protective Cap for Cable Connector (VAS 6223/9)

- Switch off all electrical consumers.

- Remove the ignition key.

Removing

- Open glove box.

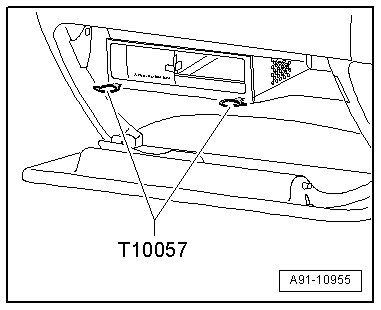

- Insert the two clips of the (T10057) into the release slits on the external audio source connection until they engage. Points on the grip eyelets of tool face outward.





- Pull external audio source connection out of mounting frame.

- Disconnect all connectors on the external audio source connection.

- Remove the (T10057), push locking tabs on external audio source connection to do so.

Removing the Internal Control Unit

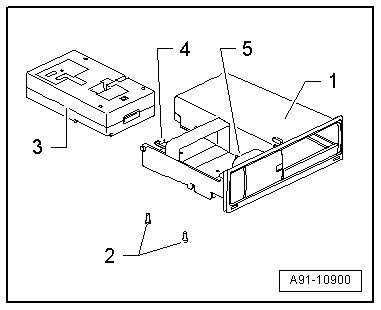

- Remove the screw - 2 - on back side (2 Nm).





- Press the tabs - 4 - and - 5 - down and up and remove the control module - 5 - back from the frame - 1 -.

Installing

- Connect all harness connectors.

- Slide the external audio source connection on the mounting frame until it engages.
