Smooth Line

Smooth Line

• Smooth lines with a diameter of 5 x 1 mm or 6 x 1 mm can be replaced with an Ethylene Propylene Diene Monomer (EPDM).

- Trim and remove the damaged sections of line.





- Select the appropriate EPDM line - 2 - and cable tie.

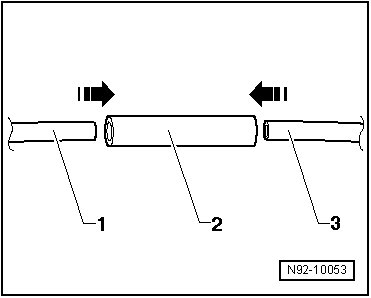

- Cut a length of EPDM line - 2 - so that the ends of the smooth lines - 1 and 2 - can be pushed approximately 10 mm into the EPDM line - 2 -.

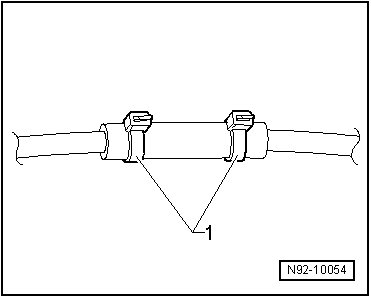

- Secure with the cable ties - 1 - as illustrated.





- Check for function and leaks.
