ATF Pipes

ATF Pipes

• Rules of cleanliness for working on automatic transmissions => [ Clean Working Conditions ] Clean Working Conditions.

Special tools, testers and auxiliary items required

• Used oil collection and extraction device (V.A.G 1782)

Removing

- Remove rear noise insulation by loosening fasteners - 2 - and, if equipped, - arrow -.





- Remove right drive axle heat shield - 1 -.





- Place old oil collecting and extracting device (V.A.G 1782) beneath transmission.

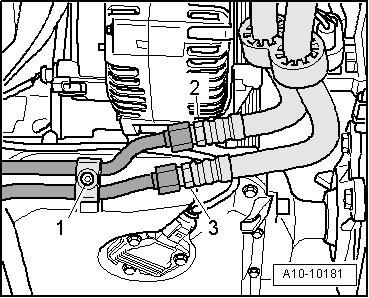

- Loosen union nuts - 2 - and - 3 - and disconnect ATF lines.

- Remove retaining clamp - 1 -.

• Observe cleanliness rules when working on automatic transmissions => [ Clean Working Conditions ] Clean Working Conditions.

• To collect escaping ATF, lay a clean cloth under the separating point.

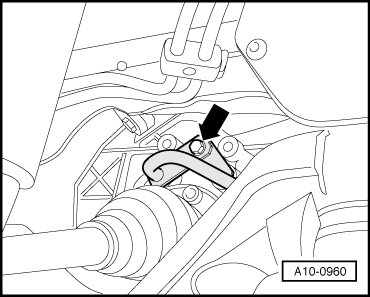

- Remove bolt - arrow - and remove ATF lines from transmission.





Installing

Install in reverse order, paying attention to the following:

• Replace O-rings.

- Insert ATF lines by hand to stop in transmission, then tighten.

Tightening specifications => [ ATF Pipes, ATF Cooler and ATF Additional Filter Assembly Overview ] Description and Operation.
