Brake Caliper, Front Brake, RS 6

Brake Caliper, Front Brake, RS 6

• Install on one axle on brake calipers from the same manufacturer and with the same quality

Removing

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1332)

• Reversible Ratchet (V.A.G. 1332/1)

• Brake Pedal Actuator (V.A.G 1869/2)

• Piston Resetting Tool (T10145)

- Insert the brake pedal actuator (V.A.G 1869/2) between the brake pedal and driver seat by pressing the brake pedal down at least 60 mm.





- Raise vehicle.

- Remove wheels.

- Connect the hose from a bleeder bottle to one of the bleeder screws on the front caliper.

- Open a bleeder screw on the front brake caliper to reduce the pressure from the brake system.

- Close the bleeder screw.

• Do not remove brake pedal loading device (V.A.G 1869/2).

- Remove brake pads. Refer to => [ Front Brake Pads, RS 6 ] Brake Pad

• When removing, mark brake pads that will be used again. Install in the same position, otherwise braking effect will be uneven!

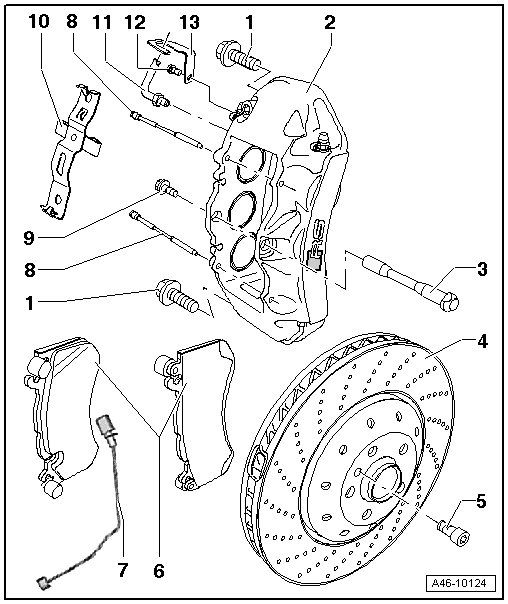

• The brake disc is secured with a bolt.

- Remove the brake line - 11 -.





- Remove the bolts - 1 -.

- Remove the brake caliper from the vehicle.

Installing

- Install the brake caliper.

Always use new screws - 1 -.





- Tighten the new brake caliper screws - 1 - to 196 Nm.

- Install the brake line - 11 - in the brake caliper and tighten it.

The brake line - 11 - must fit securely in the bracket.

- Attach the brake pad wear wire.

- Install brake pads => [ Front Brake Pads, RS 6 ] Removal and Replacement.

- Bleed brake system => [ Bleeding Brake System ] Procedures

- Install wheels.

- Lower vehicle.
