Brake Caliper, 2FNR 42 AL Caliper

Brake Caliper, 2FNR 42 AL Caliper

Special tools, testers and auxiliary items required

• Disassembly Wedge (3409)

• Assembly Paste

• Assembly device for protective cap (T10146/5)

• Piston resetting tool (T10145)

Removing

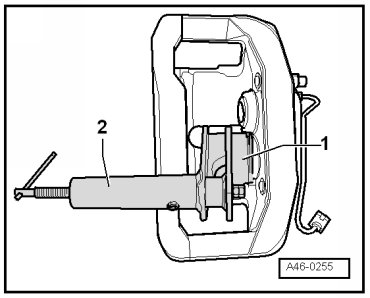

- Force piston from brake caliper housing using compressed air.





- Pos.- 1 -piston resetting tool (T10145)

• Place a wooden board into the recess of the caliper housing so it is not damaged.

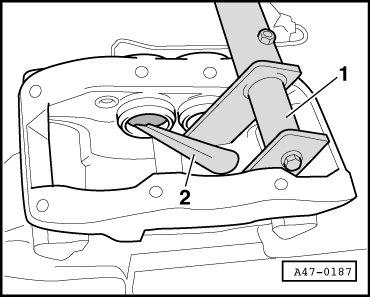

- Remove protective cap from brake caliper, e.g. with trim removal wedge 3409.





- Remove seal.





- Use trim removal wedge 3409 - 2 - for this.

- Pos.- 1 -piston resetting tool (T10145)

• When removing, make sure that surface of cylinder is not damaged.

Installing

- The surface of the piston and seal must only be cleaned with mineral spirits and then dried.

- Thinly coat piston and seal with assembly paste before inserting.

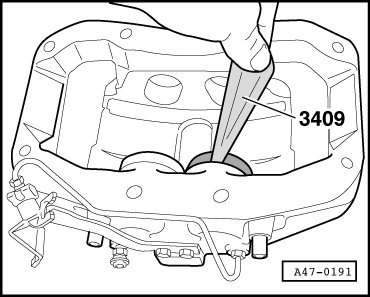

- Insert inner seal in brake caliper groove using trim removal wedge 3409.

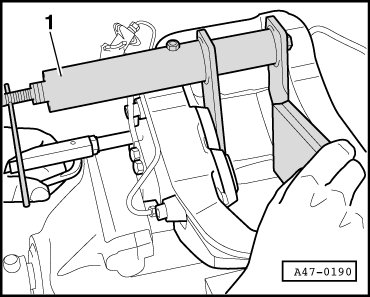

- Press in the protective cap using special tool - 1 - and - 2 -.





- Item - 1 - assembly tool for protective caps (T10146/5)

- Pos.- 2 -piston resetting tool (T10145)

Use protective backings

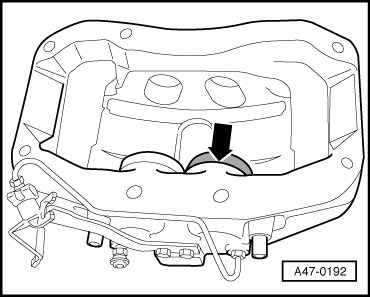

- Press the protective cap onto the brake caliper housing so that it contacts the brake caliper housing all around - arrow -.





Use protective backings

- It should no longer be possible to remove the protective cap from the brake caliper housing by hand.





- Thinly coat piston and seal with Assembly Paste before inserting.

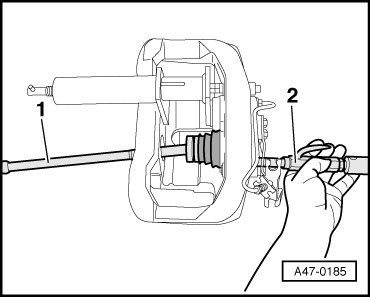

- Lift the brake piston, as shown, with commercially available extension and ratchet adapter and lightly press against the protective cap.





Do not angle piston, to avoid damaging the seal sleeve.

- Blow the protective cap on with pressurized air (max. 3 bar). The protective cap will thereby jump over the brake piston.

Use protective backings

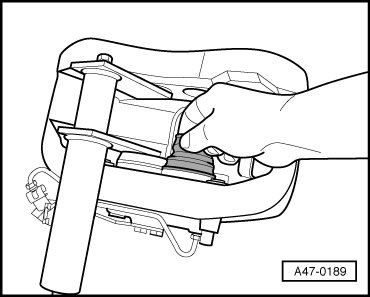

- Press piston into the brake caliper housing by hand.





• The inner sealing lip of the protective cap thereby slips into the groove on the piston.

• Bleed the brake system after servicing and installing the brake caliper. Refer to => [ Bleeding Brake System ] Procedures
