Roof Trim Overview

Roof Trim

=> [ Headliner Component Overview ]

Headliner Component Overview

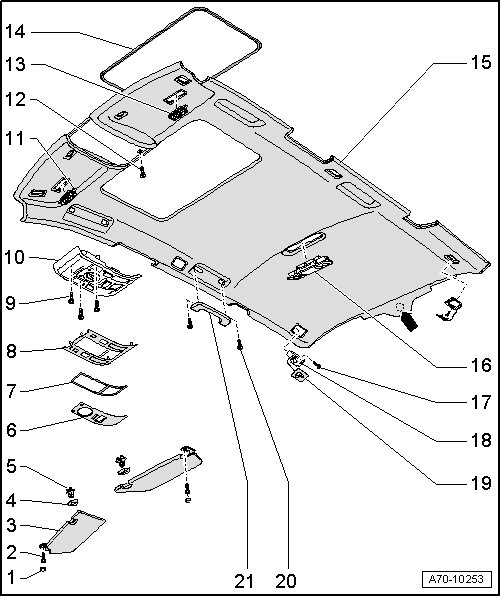

• The Audi Avant headliner is shown in the following.





1 Cap

2 Bolt

3 Sun visor

• Removing and Installing => [ Sun Visor ] Roof Trim

4 Cover

• For sun visor center bracket

• Removing and Installing => [ Sun Visor Center Mount ] Roof Trim

5 Sun visor center bearing

• Removing and Installing => [ Sun Visor Center Mount ] Roof Trim

6 Center cover

• For interior light/front reading light

7 Decorative frame

• For center cover

8 Diffusion lens

• For interior light/front reading light

9 Bolt - 2 Nm

10 Interior light/front reading light

11 Vanity mirror light

12 Bolt - 1.5 Nm

13 Vanity mirror light

14 Sunroof cover frame

15 Headliner

• Removing and Installing => [ Headliner ] Roof Trim

• Release clip - arrow - => [ Release headline clip ]

16 Interior light/rear reading light

17 Bolt - 9 Nm

• Self-locking

• Replace

• Threaded holes for screws must always be cleaned (for example, with thread cutter)

18 Partition grille mount

• Removing and Installing => [ Headliner ] Roof Trim

19 Cover

• For partition grille mount

• Removing and Installing => [ Headliner ] Roof Trim

20 Bolt

21 Roof grab handle

• Removing and Installing => [ Roof Grab Handle ] Roof Trim

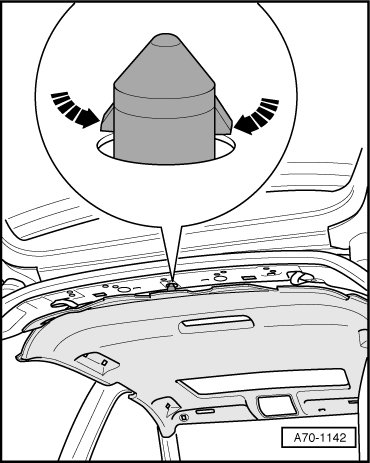

Release headline clip





- Release clips on rear clip - arrows -.
