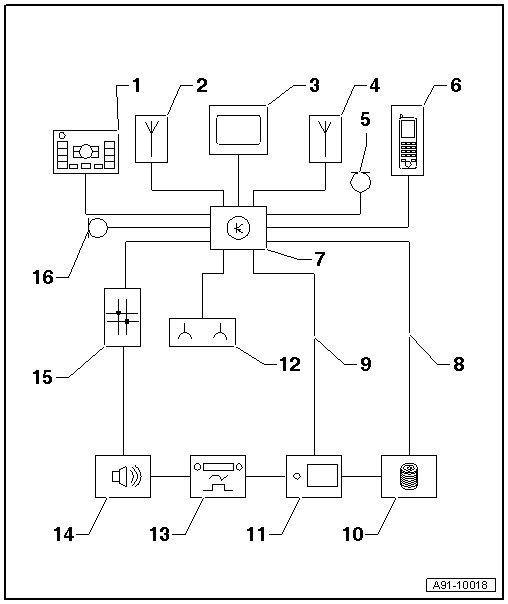

MMI Maximum Equipment Overview from June 2009
MMI Maximum Equipment Overview from June 2009
1 Multimedia Control Head (E380) in Lower Center Console
2 Roof Antenna (R216) (Navigation System Antenna (R50))
3 Front Information Display Control Head (J685) in Center Instrument Panel
4 Not Installed
5 Microphone Unit In Front Roof Module (R164) (Left Front Microphone (R140)) inside Front Interior Light (W1)
6 Not installed
7 Information Electronics Control Module 1 (J794) inside Glove Compartment on the Left Side
8 MOST Bus
9 FBAS Wire
10 CD Changer (R41) inside Glove Compartment on Right Side
11 Not Installed
12 External Audio Source Connection (R199) (Interface) in Glove Compartment
13 Radio (R) behind Left Luggage Compartment Side Trim
14 Digital Sound System Control Module (J525) behind Left Luggage Compartment Side Trim
15 Data Bus On Board Diagnostic Interface (J533) behind Glove Compartment
16 Microphone Unit In Front Roof Module (R164) (Right Front Microphone (R141)) inside Front Interior Light (W1)
