Rear Vision Camera: Locations

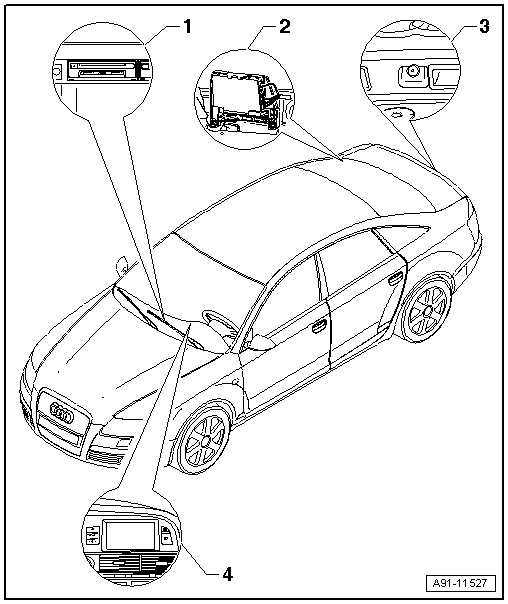

Rearview Camera System Installed Locations from September 2008





1 Information Electronics Control Module 1 (J794)

• At left in glove compartment

• Connector assignment, refer to => [ MMI, Maximum Equipment, from September 2008 ] MMI, Maximum Equipment, from September 2008

2 Rear View Camera System Control Module (J772)

• Behind luggage compartment right side trim

• Connector assignment, refer to => [ Rearview Camera System Control Module ] Rearview Camera System Control Module

• Removing and installing, refer to => [ Rearview Camera System Control Module ] Rearview Camera System Control Module

3 Rear View Camera (R189)

• In rear lid next to handle

• Sedan, removing and installing, refer to => [ Rearview Camera System ] Rearview Camera System

• Avant, removing and installing, refer to => [ Rearview Camera System ] Rearview Camera System

4 Front Information Display Control Head (J685)

• In the center of the instrument panel
