Drive Plate Overview

Drive Plate Overview

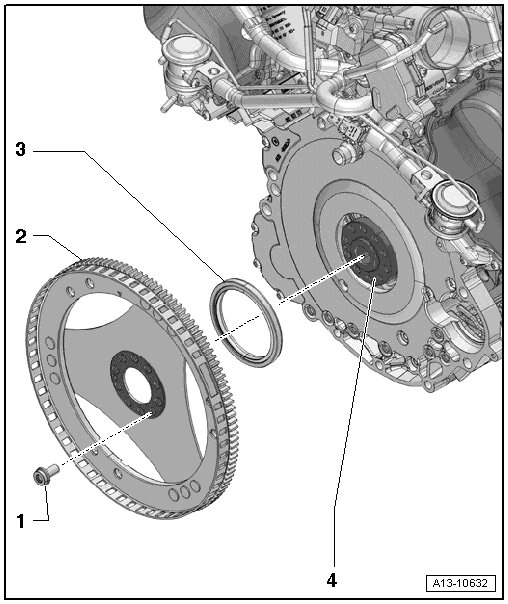

• For assembly work, secure the engine on the engine and transmission holder (VAS 6095) => [ Engine, Securing to Engine and Transmission Holder ] Procedures.






1 Bolt

• Replace

• 60 Nm plus an additional 90° turn

2 Drive Plate

• Installation is only possible in one position because of the offset holes

• Removing and installing, refer to => [ Drive Plate ] Drive Plate

3 Crankshaft Shaft Seal, Transmission Side

• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair.

4 Crankshaft
