Rear Lid, Avant

Rear Lid Seal

• Remove rear lid before installing seal.

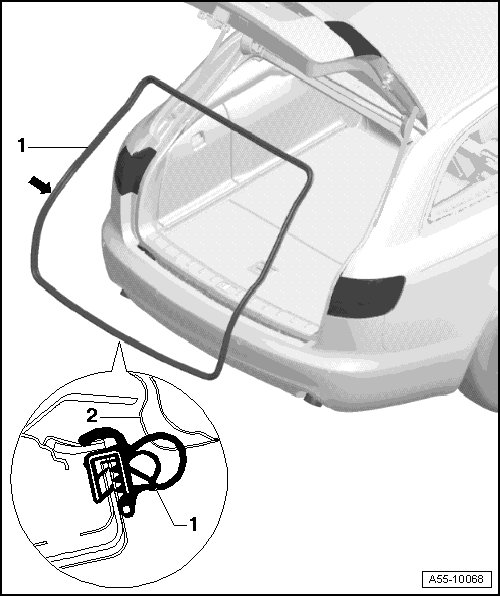

1 Rear lid seal

• Removal:

- Unclip the trim panels on the D-pillar and on the roof.

- Open rear lid and remove the seal on the D-pillar.

- Pull off seal from body flange in longitudinal direction at roof and at rear cross panel on bottom.

- When installing, vulcanized seal butt joint - arrow - must lie in upper edge of rear lid.

- Press seal - 1 - onto body flange, as shown.

2 Rear lid
