Opening For Rear Lid Lock Button, Adding In Lower Rear Lid Trim

Opening for Rear Lid Lock Button, Adding in Lower Rear Lid Trim

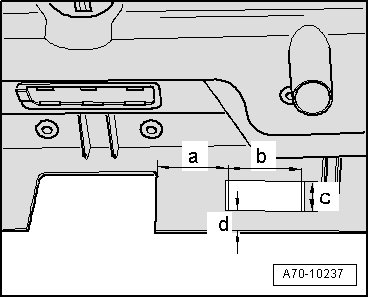

- Cut Rear Lid Lock Button (in luggage compartment) (E406) opening in new lower trim according to dimensions show in illustration.

• Dimension - a - = 44 mm

• Dimension - B - = 49 mm

• Dimension - c - = 24 mm.

• Dimension - d - = 23 mm

Installation is reverse of removal, but note the following:

- Install lower trim => [ Lower Rear Lid Trim ] Trim, Avant.

- Connect electrical connector.

- Press Rear Lid Lock Button (in luggage compartment) (E406) down until it engages.
