Air Guides for Battery Cooling Module Overview
With high voltage systems (hybrid vehicles)
Read and follow all of the supplemental warnings for all work performed on vehicles with the high voltage system.
If it is necessary for the following procedure to perform work in the vicinity of high voltage components, perform a visual inspection of the high voltage components and cables for damages. Refer to => [ Visual Inspection of High-Voltage Components and Cables for Damage ] Visual Inspection of High-Voltage Components and Cables For Damage and always follow the warnings when working on the high voltage system.
Risk of unintended engine start
The ignition must be turned off and the ignition key must remain outside of the vehicle when working on vehicles with a high voltage system.
How to handle high voltage cable:
• Do not stand on or place tools on high voltage cables and their components as it may damage the cable insulation.
• Never bend or kink high voltage cables forcefully as it may damage the cable insulation.
• Color-code the round high voltage connector with an external color ring and code them mechanically using the guide- or code tabs. Always make certain that the coding matches when connecting the round connector in order to avoid mechanically damaging the high voltage connector.
There is a risk of electrocution from damaged high voltage components
Observe the following when working around high voltage components and high voltage wires:
• Never work around high voltage components and cables with cutting, deformed, or sharp edged tools, or heat sources such as welding or soldering tools, heated air, and thermal glue.
• Inspect the high voltage components visually before beginning.
• Perform a visual inspection of the electric drive power and control electronics (JX1) , the electro-drive drive motor (V141) , the A/C compressor (V470) and the high voltage lines when working in the engine compartment.
• Perform a visual inspection of the high voltage lines and the cover when working on the underbody.
• Perform a visual inspection of the high voltage lines and the Electrobox with the high voltage system maintenance connector (TW) when working in the luggage compartment.
• Perform a visual inspection on all of the potential equalization cables.
Observe the following items when performing the visual inspection:
• The components do not display any signs of external damage.
• The high voltage cable insulation and the potential equalization cables are not damaged.
• The high voltage cables do not display any abnormal deformations.
• Every high voltage component is marked with a red warning label.
Additional work
- Turn off the ignition.
- Remove the luggage compartment floor (various versions).
• Check for damage to the high voltage components and cables after removing the luggage compartment floor.
• Make sure that the components and cables are not damaged when working in the area of high voltage components and cables.
• Perform a visual inspection of the high voltage components and cables after finishing work on and before installing the luggage compartment floor panel.

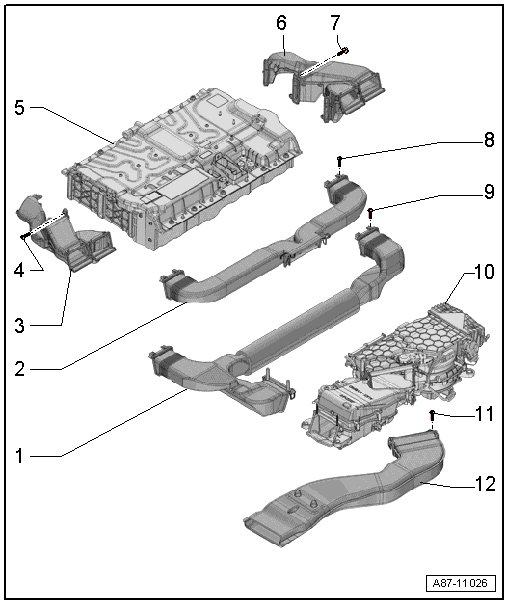

Air Guides on Battery Cooling Module
1 Inlet (Lower) Air Guide for the Traction Battery
• Removing and installing, refer to => [ Traction Battery Inlet Air Guide ] Traction Battery Inlet Air Guide.
• Attach the air guide to the battery cooling module using one bolt and to the air guide using several bolts if the retainers no longer hold or one of the tabs breaks off.
2 Front Outlet (Upper) Air Guide for Traction Battery
• Removing and installing, refer to => [ Traction Battery Front Outlet Air Guide ] Traction Battery Front Outlet Air Guide.
• Use several bolts to attach the air guide to the battery cooling module if the retainer no longer holds or one of the tabs breaks off.
3 Left Air Guide to Traction Battery
• Removing and installing, refer to => [ Traction Battery Left and Right Air Guides ] Traction Battery Left and Right Air Guides.
• Use an additional bolt to attach the air guide if the retainers no long hold. It will be necessary to remove the traction battery to do this.
4 Screw
• Use an additional bolt to attach the air guide if the retainers no longer hold. It will be necessary to remove the traction battery to do this.
5 Traction Battery (A2)
6 Right Air Guide to Traction Battery
• Removing and installing, refer to => [ Traction Battery Left and Right Air Guides ] Traction Battery Left and Right Air Guides.
• Use an additional bolt to attach the air guide if the retainers no long hold. It will be necessary to remove the traction battery to do this.
7 Screw
• Use an additional bolt to attach the air guide if the retainers no longer hold. It will be necessary to remove the traction battery to do this.
8 Screw
• Use an additional bolt to attach the air guide if the retainers no longer hold.
9 Screw
• Use an additional bolt to attach the air guide if the retainers no longer hold.
10 Battery Cooling Module
11 Screw
• Use an additional bolt to attach the air guide if the retainers no longer hold.
12 Rear Outlet Air Guide for the Traction Battery
• Removing and installing, refer to => [ Traction Battery Rear Outlet Air Guide ] Traction Battery Rear Outlet Air Guide.
• Use several bolts to attach the air guide to the battery cooling module if one of the tabs breaks off.
