Front Brake Disc, FN-3

Front Brake Disc, FN-3

Always use new bolts => ETKA.

• Always replace on both axles.

Removing

- Raise the vehicle.

- Remove the wheels.

- Remove the front brake pads => [ Front Brake Pads, FN-3 ] Front Brake Pads, FN-3.

Do not let the brake caliper hang from the brake hose. Secure it to the body with suitable cable ties or wire. Do not support the weight with the brake hose.

Do not press the brake pedal when the caliper is removed.

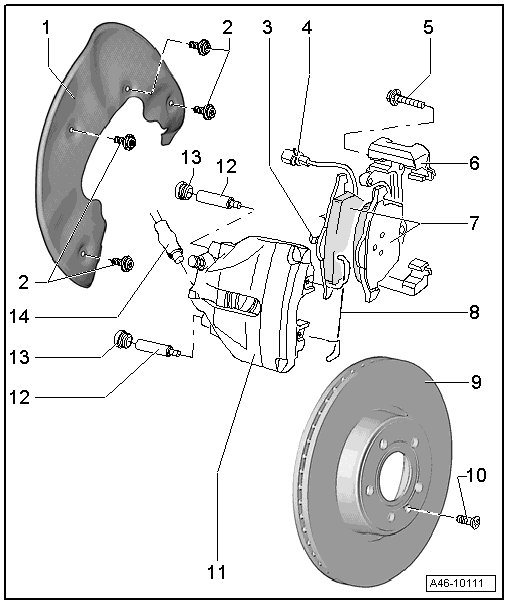

- Remove the bolts - 5 - on the front brake carrier.






- Remove the front brake carrier.

- Remove the securing bolt - arrow - on the brake disc while holding the disc firmly.






- Remove the brake rotor.

• When removing the brake rotor from the wheel hub, do not tilt the disc.

Installing

Always use new bolts => ETKA.

Clean the brake disc, wheel hub and contact surfaces before installing.

- Place the brake disc on the hub.

• When positioning the brake rotor, do not tilt it on the wheel hub.

- Install the securing bolt - arrow - and tighten.






- Position the front brake carrier.

- Install the screws - 5 - on the front brake carrier and tighten to the tightening specification.






- Install the front brake pads => [ Front Brake Pads, FN-3 ] Front Brake Pads, FN-3.

• After replacing the brake pads, press the brake pedal firmly several times while the vehicle is stationary so that the brake pads are seated properly in their normal operating position.

- Install the wheels.

Wheel bolt tightening specifications => 44.
