Front Brake Disc, FBC-57

Front Brake Disc, FBC-57

Use new bolts. Refer to the => Parts Catalog.

• Always replace on both axles.

Removing

The 4 retaining pins for the brake pads on the brake carrier must not be loosened under any circumstances.

- Raise the vehicle.

- Remove the wheels.

- Remove the front brake pads => [ Front Brake Pads, FBC-57 ] Front Brake Pads, FBC-57.

Do not let the brake caliper hang from the brake hose. Secure it to the body with suitable cable ties or wire. Do not support the weight with the brake hose.

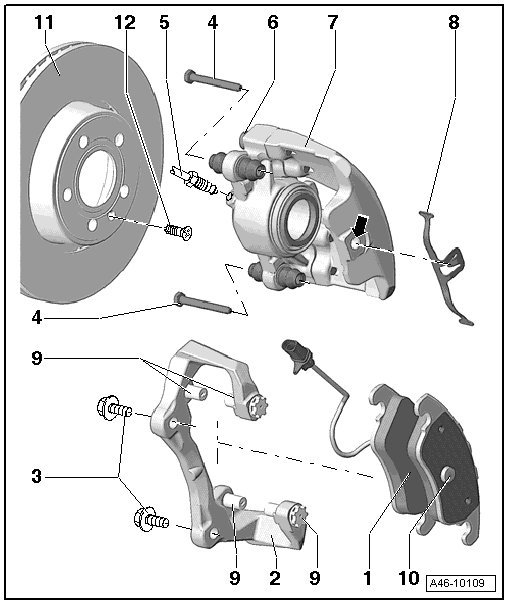

- Remove the bolts - 3 - on the front brake carrier.






Never remove bolts - 6 and 9 -

- Remove the front brake carrier.

- Remove the securing bolt - arrow - on the brake disc while holding the disc firmly.






- Remove the brake rotor.

• When removing the brake rotor from the wheel hub, do not tilt the disc.

Installing

Use new bolts. Refer to the => Parts Catalog.

Clean the brake disc, wheel hub and contact surfaces before installing.

- Place the brake rotor on the hub.

• When positioning the brake rotor, do not tilt it on the wheel hub.

- Install the securing bolt - arrow - and tighten.






- Position the front brake carrier.

• do not angle the brake carrier with mounting it






- Install the screws - 3 - on the front brake carrier and tighten to the tightening specification.

- Install the front brake pads => [ Front Brake Pads, FBC-57 ] Front Brake Pads, FBC-57.

• After replacing the brake pads, press the brake pedal firmly several times while the vehicle is stationary so that the brake pads are seated properly in their normal operating position.

- Install the wheels.
