Front Inner Wheel Spoiler







Front Inner Wheel Spoiler

Removing

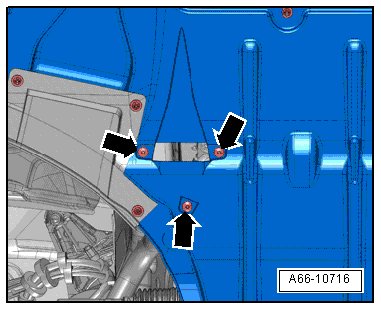

- Remove the bolts - arrows -.

- Remove the quick release - 1 -.






- Remove front wheel spoiler - 2 -.

Installing

• Tightening specifications, refer to => [ Front and Rear Noise Insulation Assembly Overview ] Underbody Panels Audi RS4.

Install in reverse order of removal.
