Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Panel From MY 2007
Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Panel From MY 2007

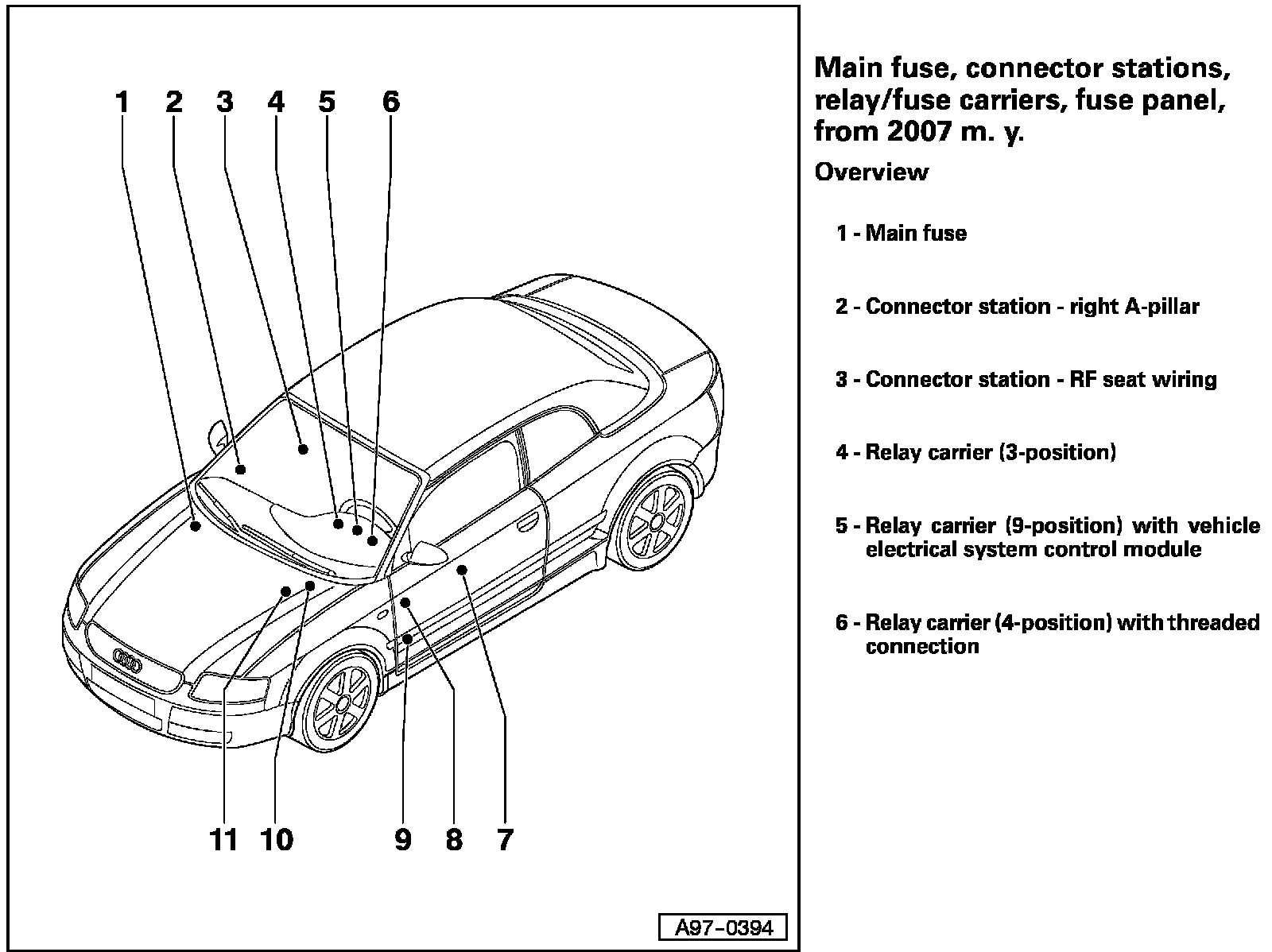

Main Fuse, Connector Stations, Relay/fuse Carriers, Fuse Panel Part 1:

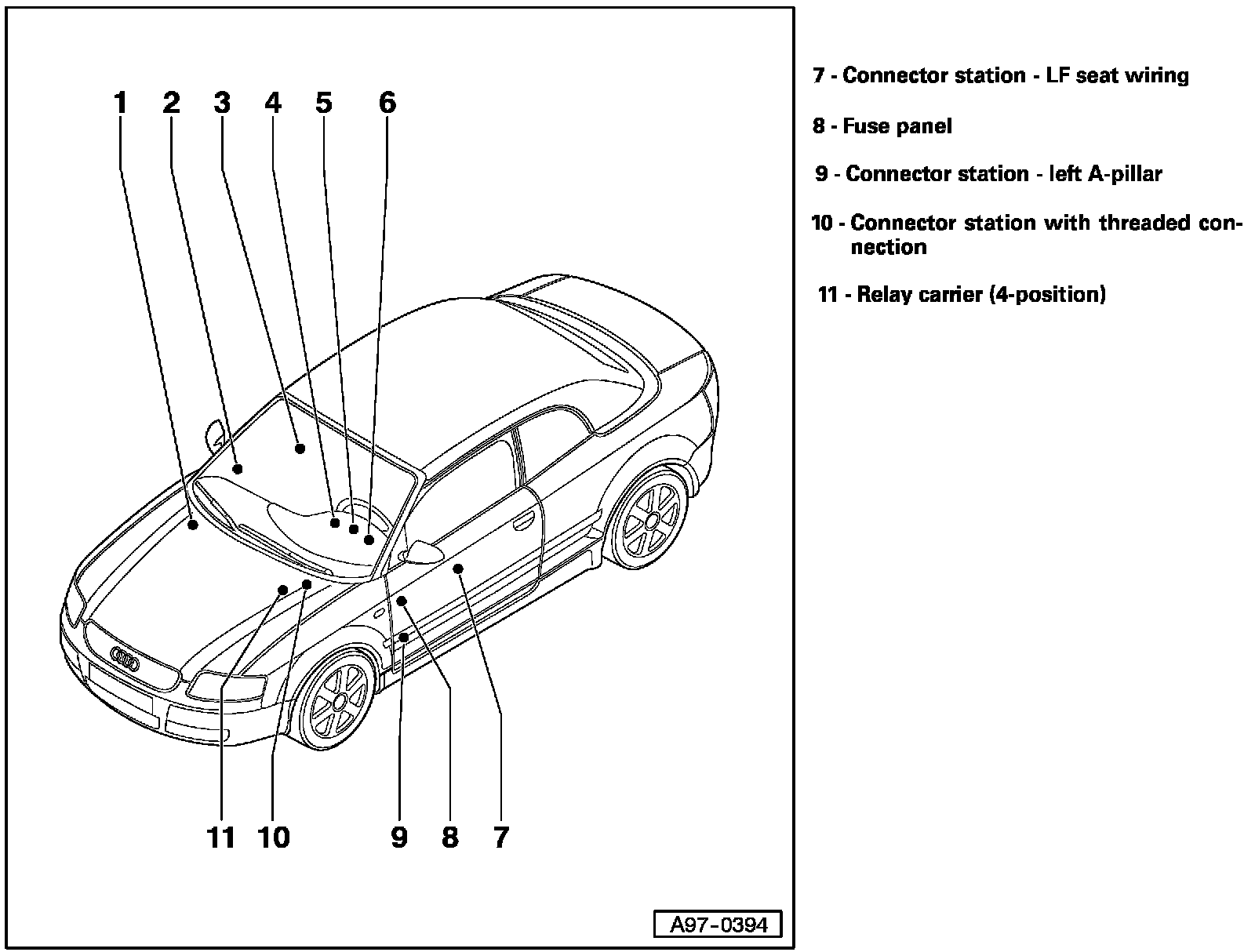

Main Fuse, Connector Stations, Relay/fuse Carriers, Fuse Panel Part 2:
