Relay Assignment on E-Box Engine Compartment
Relay Assignment on E-Box Engine Compartment

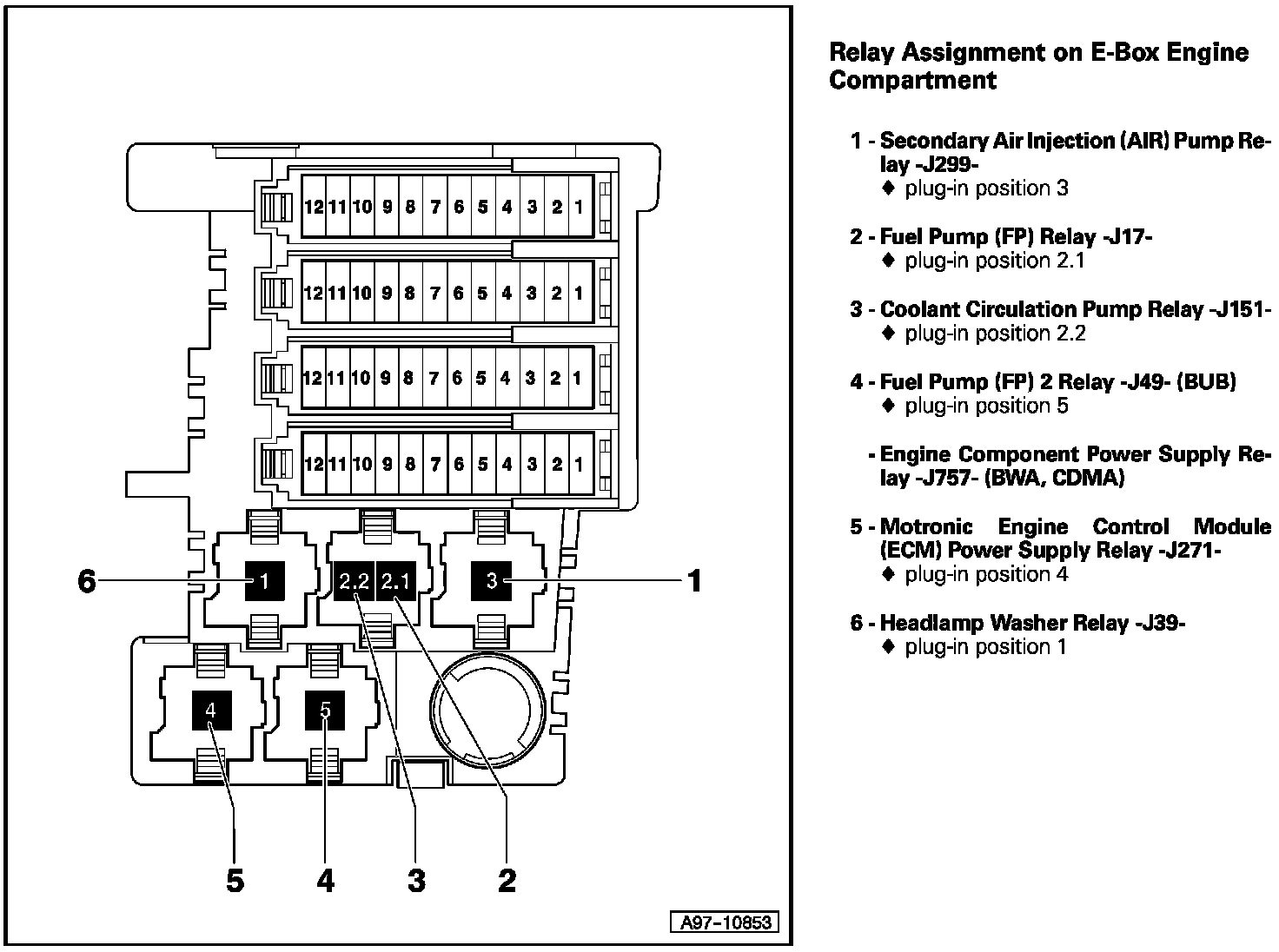

Relay Assignment On E-Box Engine Compartment:
