Curiosii for ever!: Car repair manuals for everyone.

Home >> Audi >> 2008 >> TT Quattro Coupe (8J3) V6-3.2L (CBRA) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID >> Relay Assignment Below Instrument Panel Left

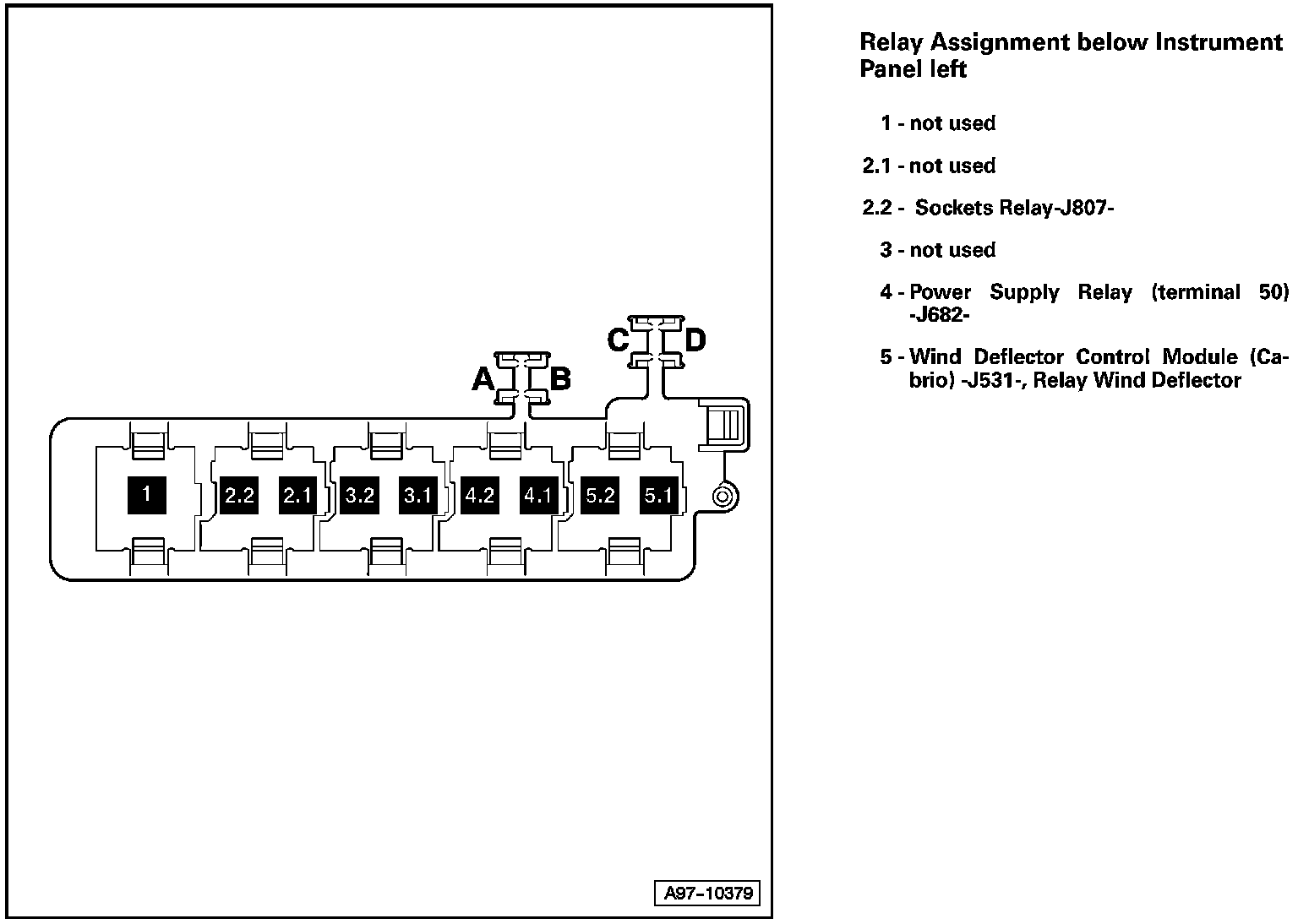

Relay Assignment Below Instrument Panel Left

Relay Assignment Below Instrument Panel Left:
