Tiptronic Switch, From MY 2012

Tiptronic Switch, from MY 2012

- Turn off all electrical consumers.

- Switch off ignition and remove ignition key.

Removing

- Remove the decorative trim and the multifunction buttons.

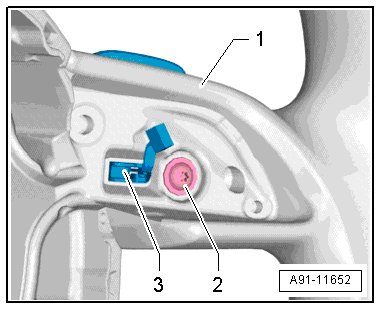

- Remove the screw - 2 - from the steering wheel - 1 - and remove the Tiptronic switch - 3 - with its connecting wire.






Installing

- Install in reverse order of removal.

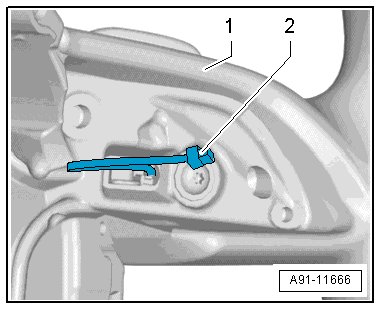

- Pay attention to the position of the connecting wire - 2 - to the multifunction button.






Tightening specifications, refer to => [ 4-Spoke Steering Wheel Overview ] 4-Spoke Steering Wheel Overview.
