Crankshaft: Service and Repair

Crankshaft Overview

• For assembly work, secure the engine on the engine/transmission holder (VAS 6095). Refer to => [ Engine, Securing to Engine and Transmission Holder ] Procedures.

• Lubricate all bearings and running surfaces.






1 Cylinder Block

• Paired to - 12 -

• Sealant applied on cylinder block (for guide frame), refer to => [ Sealant Applied on Cylinder Block (for guide frame) ]

2 Seals

• Replace

3 Crankshaft Shaft Seal, Belt Pulley Side

• Removing and installing, refer to => [ Crankshaft Shaft Seal, Belt Pulley Side, Replacing ] Service and Repair

4 Alignment Bushing

• Quantity: 2

• Insert into guide frame

• Installed position, refer to => [ Installation Position of Alignment Bushings ]

5 Bolt

• 9 Nm

6 Guide Tube for Oil Dipstick

7 O-ring

• Replace

8 Bolts

• For guide frame

• Replace

• Various screw sizes

• Tightening specification and sequence, refer to => [ Guide Frame Tightening Specifications and Sequence ]

9 Baffle Plate

10 Bolt

• Tightening specification and sequence, refer to => [ Baffle Plate - Tightening Specifications and Sequence ]

11 Bolt

• For guide frame to cylinder block sealing surfaces

• Different bolt lengths

• Tightening sequence, refer to => [ Guide Frame Tightening Specifications and Sequence ]

12 Guide Frame

• Paired to - 1 -

• Sealant applied on cylinder block (for guide frame), refer to => [ Sealant Applied on Cylinder Block (for guide frame) ]

13 Thrust Washer

• Only at the 4th crankshaft bearing

• Installed position: lubricating grooves face outward

• Note locating point in guide frame

14 Bearing Shell

• For guide frame without lubricating groove

• Always replace if removed

• Insert new bearing shells for guide frame with proper color marking: New crankshafts, refer to => [ Main Bearing Shells, New Crankshaft, Allocating ] Main Bearing Shells, New Crankshaft, Allocating, used and reworked, refer to crankshafts => [ Main Bearing Shells, Used and Reworked Crankshafts, Allocating ] Main Bearing Shells, Used and Reworked Crankshafts, Allocating

15 Crankshaft

• Measuring axial play, refer to => [ Crankshaft Axial Play, Measuring ] Crankshaft Axial Play, Measuring

• Radial clearance, measuring, refer to => [ Crankshaft, Measuring Radial Play ] Crankshaft, Measuring Radial Play

• Crankshaft dimensions, refer to => [ Crankshaft Dimensions ] [1][2]Crankshaft, Engine

16 Thrust Washer

• Only at the 4th crankshaft bearing

• Installed position: lubricating grooves face outward

17 Bearing shell

• For cylinder block with oil groove

• Always replace if removed

• Insert new bearing shells for cylinder block with proper color marking: New crankshafts, refer to => [ Main Bearing Shells, New Crankshaft, Allocating ] Main Bearing Shells, New Crankshaft, Allocating, used and reworked crankshafts, refer to => [ Main Bearing Shells, Used and Reworked Crankshafts, Allocating ] Main Bearing Shells, Used and Reworked Crankshafts, Allocating

18 Seals

• Replace

Baffle Plate - Tightening Specifications and Sequence





- Tighten baffle plate bolts to 9 Nm in sequence - 1 to 16 -.

Sealant Applied on Cylinder Block (for guide frame)





- Clean sealing surfaces, must be free of oil and grease.


The lubrication system could be plugged with excess sealant.

• Do not apply sealant bead thicker than indicated.

- Apply sealant beads - arrows - to the clean sealing surfaces as shown in the illustration.

• Thickness of sealant beads: 2.0 mm.

- Position seals - 1 through 4 -.

• The guide frame must be installed within 5 minutes after applying the sealant.

Installation Position of Alignment Bushings





- If there are no alignment bushings - arrows - at the locations marked in the guide frame, insert them.

Guide Frame Tightening Specifications and Sequence





• Replace bolts that are tightened to the specification.

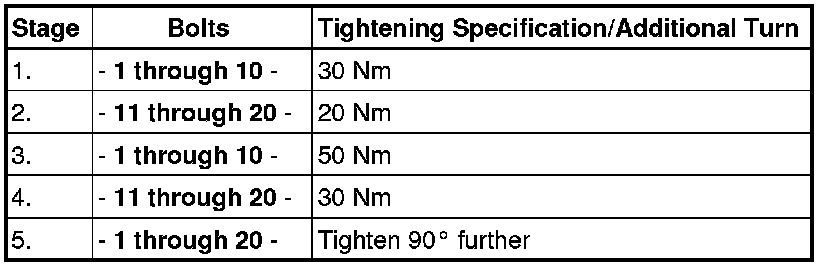

- Tighten the bolts in 5 steps in the sequence shown:






- Tighten the guide frame to cylinder block sealing surface bolts, - highlighted in dark -, in a diagonal sequence to 9 Nm.
