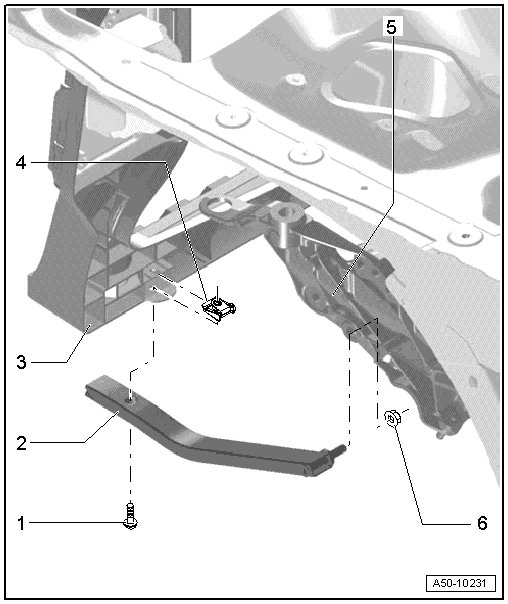

Lock Carrier Brace

Lock Carrier Brace






1 Bolt

• 1.5 Nm

2 Left Lock Carrier Brace

• Attached to the mounting bracket with the nut - 6 -.

3 Lock Carrier

4 Threaded Clip

• Slide into the lower lock carrier.

5 Subframe

6 Nut

• 23 Nm
