Armrest

Armrest

• Removing and installing is identical for the left and right sides.

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing






- Remove the door trim, Refer to => [ Door Trim ] Door Trim.

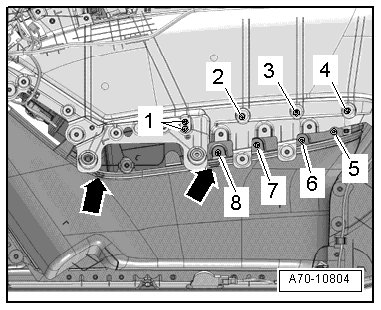

- Remove the bolts - 1 through 8 - on the rear of the door trim.

- Release the retaining hooks - arrows - on the rear of the door trim.

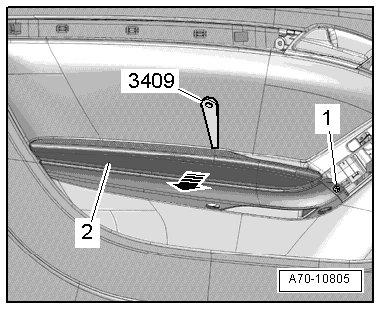

- Remove the bolt - 1 -.






- Carefully pry the armrest - 2 - out from the door trim - arrow - using the trim removal wedge (3409) and remove it.

Installing

Install in reverse order of removal.

For the correct tightening specifications, refer to => [ Door Trim Overview ] Door Trim Overview.
