Spoiler

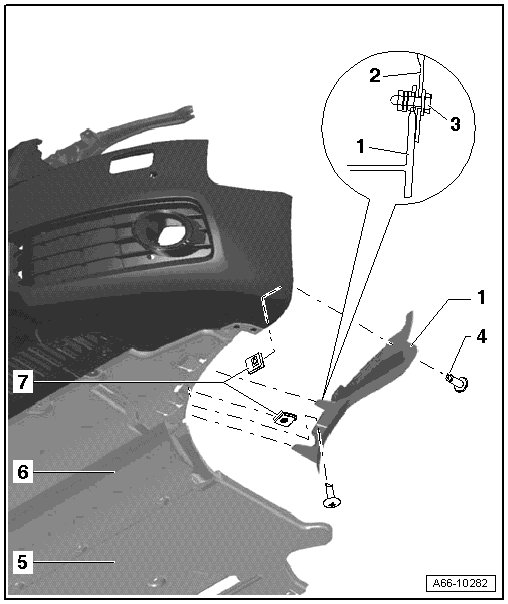

Front Wheel Spoiler






1 Wheel Spoiler

- Remove the bolts in the wheel housing liner in the spoiler area.

- Press the wheel housing liner to the side in the spoiler area and loosen the locking pins.

- Remove the wheel spoiler under the wheel housing liner.

2 Clamping Pin

3 Wheel Housing Liner

4 Bolt

- 1.5 Nm

5 Noise Insulation, Front

6 Threaded Clip

• Slide onto the noise insulation.
