Interior/Navigation - Noises From Navigation Display
91 Noises from RNS-E screen on bad roads91 10 24
2016738/3
May 10, 2010

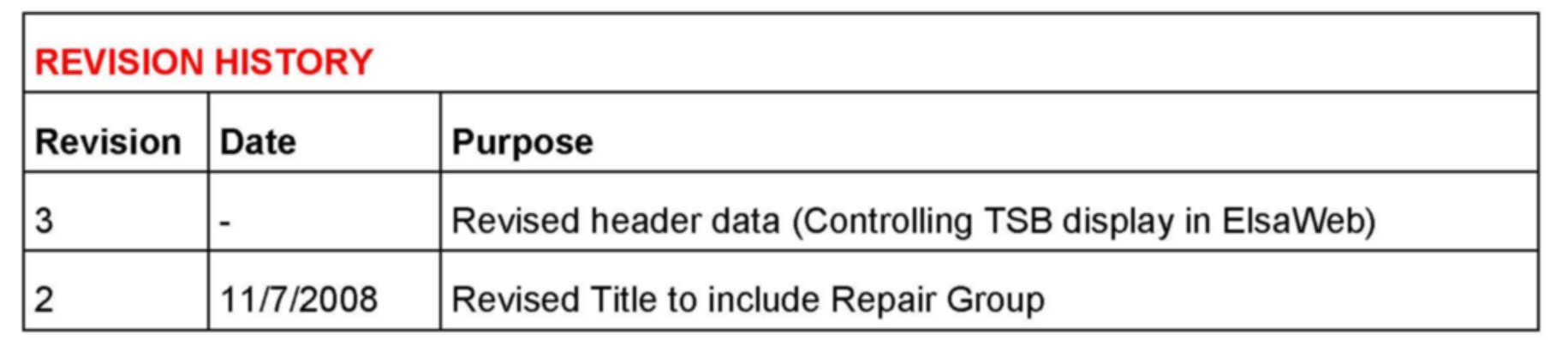

Supersedes Technical Service Bulletin Group 91 number 08-77 dated November 7, 2008 for reasons listed below.

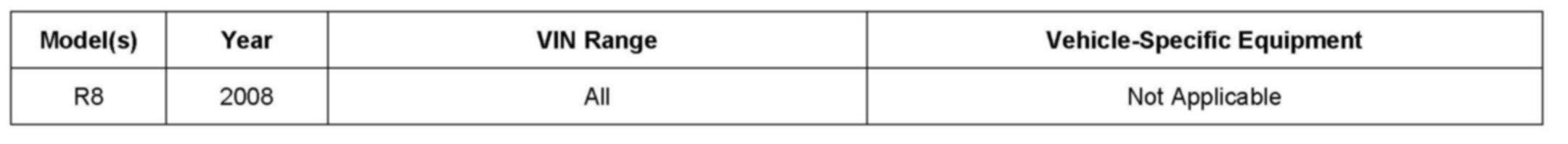

Affected Vehicles
Condition
Noises from the RNS-E navigation unit (PR No. 7Q2) when driving on poor roads.
Technical Background
Screen and housing of the navigation can make noises when severely shaken.
Production Solution
Felt strips installed in production.
Service
A repair authorization from the Technical Assistance Center is not necessary to complete this repair.
Fit felt strips/buffers to prevent the noises:

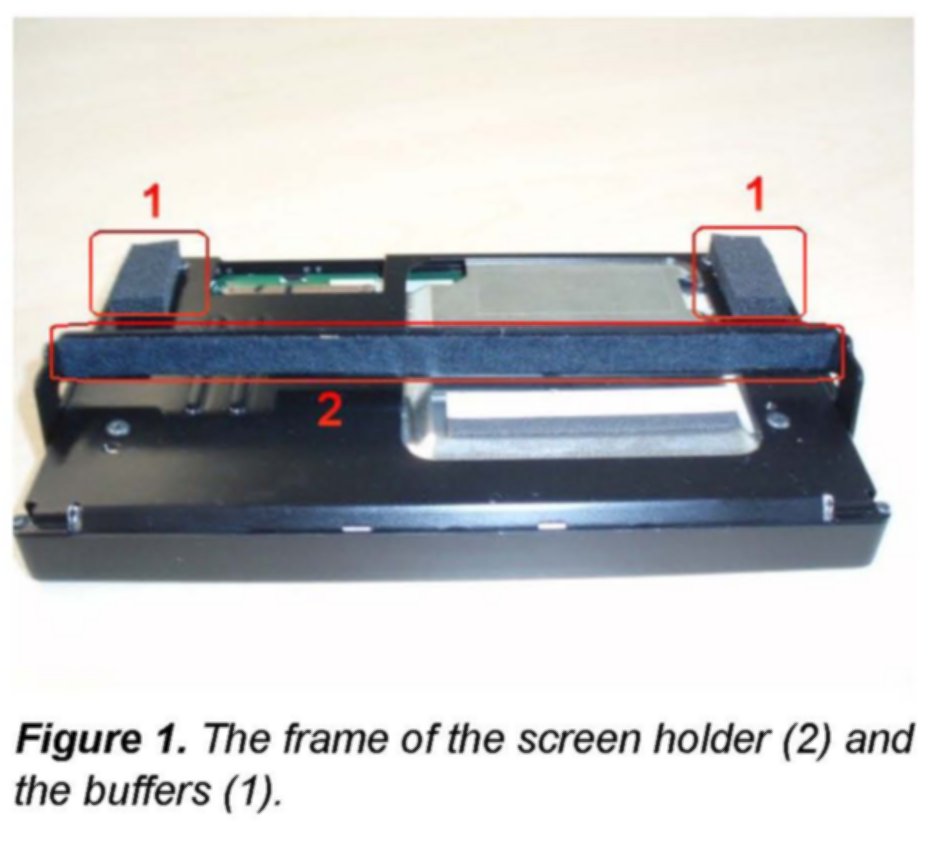

1. Attach the felt strips (155 mm x 10 mm) on the frame of the screen holder (Figure 1, Point 2).
2. Perform a test drive. If the noises persist, continue with step 3.

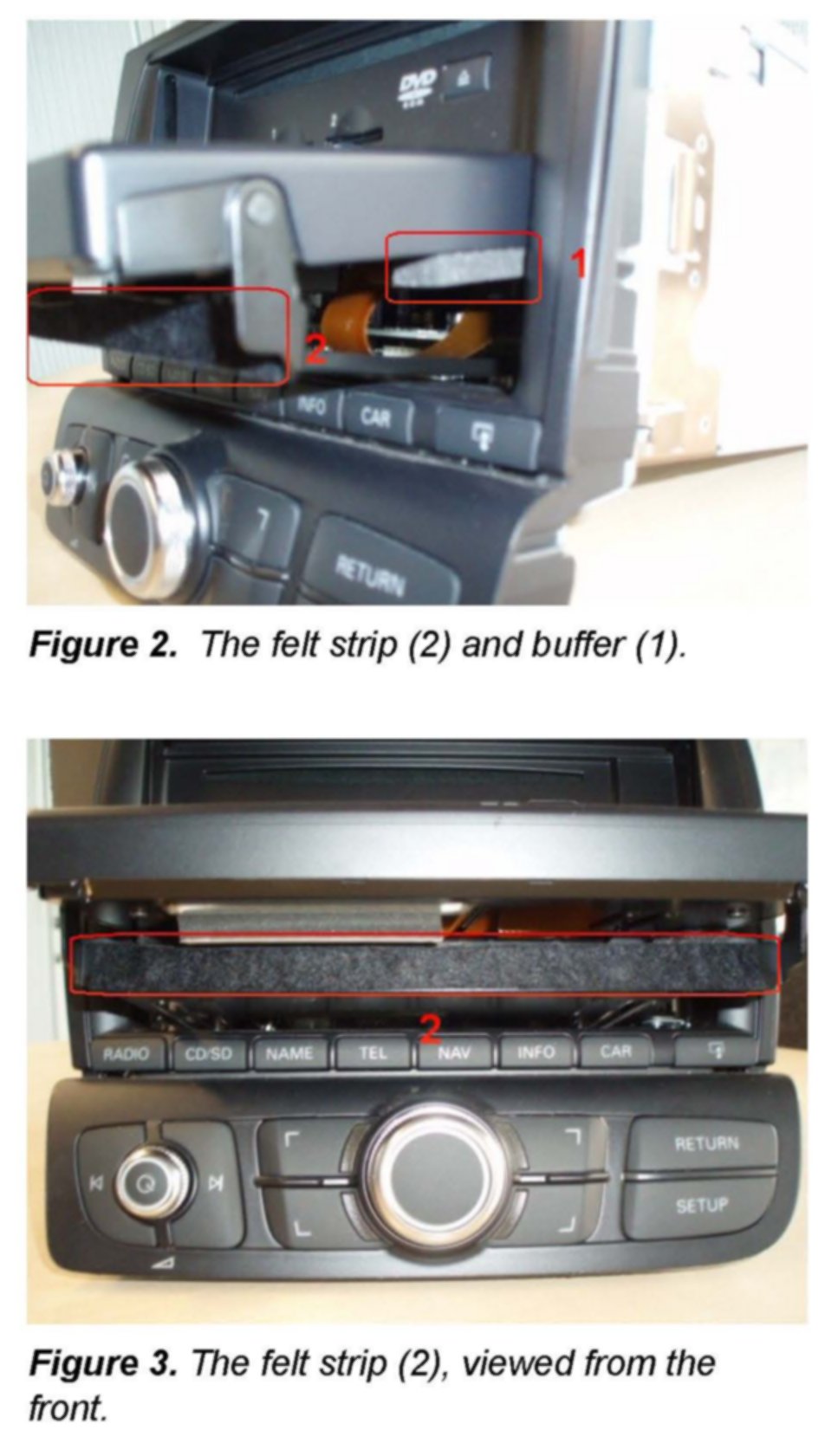

3. Fit the two buffers (10 mm x 20 mm) directly on the screen (Figure 1, Point 1).
4. The two foam strips must be flush with the screen housing. If they are too far forward, the foam strip might come off when the housing is folded in.

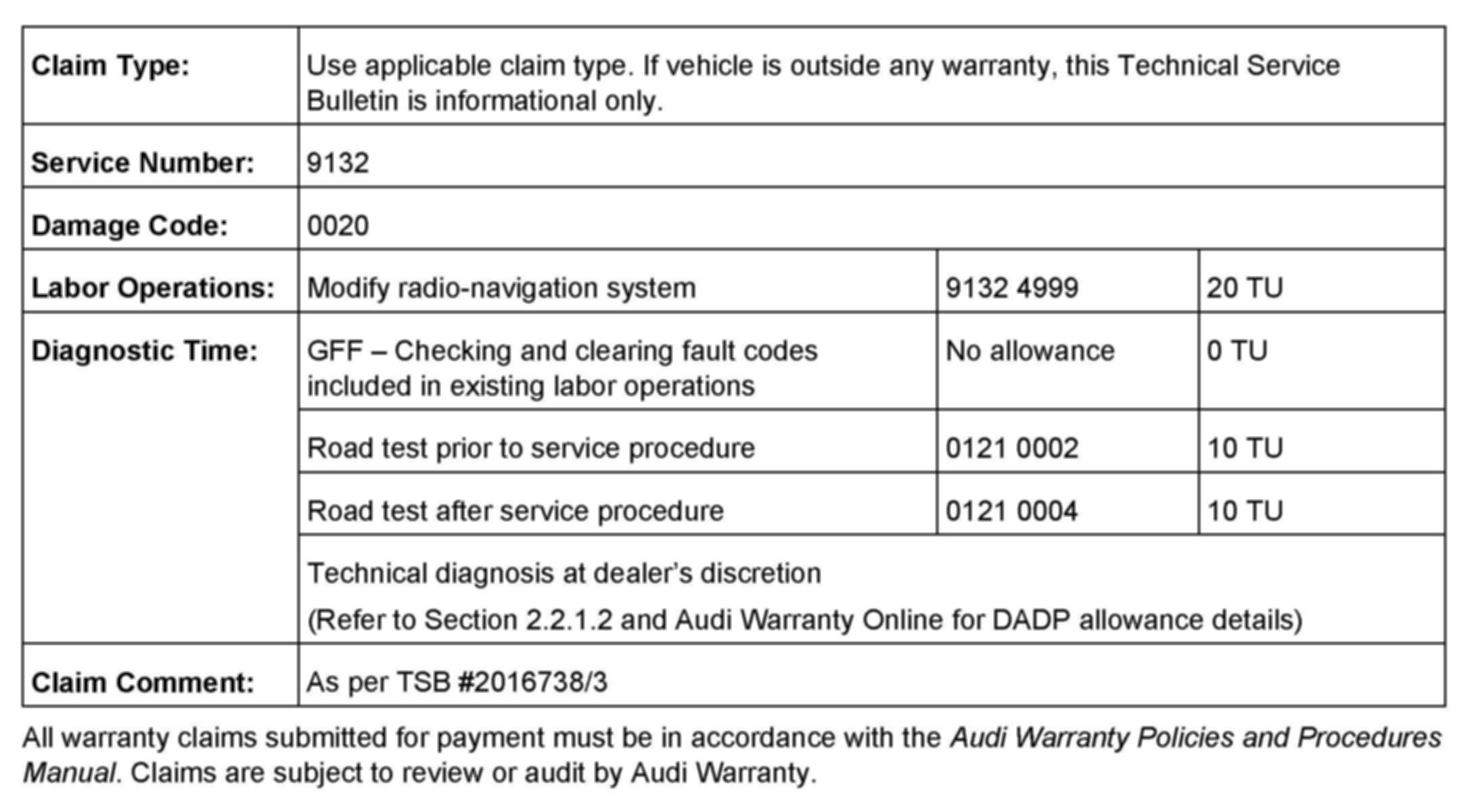

Warranty

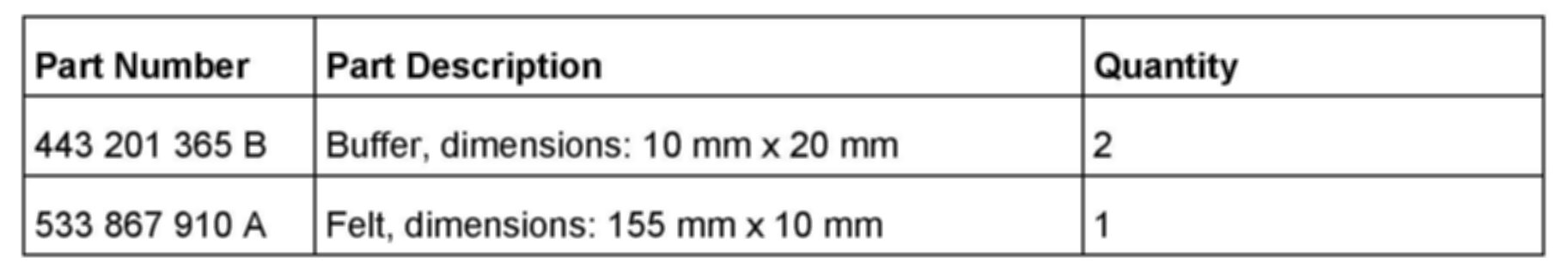

Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
