Generator Assembly Overview

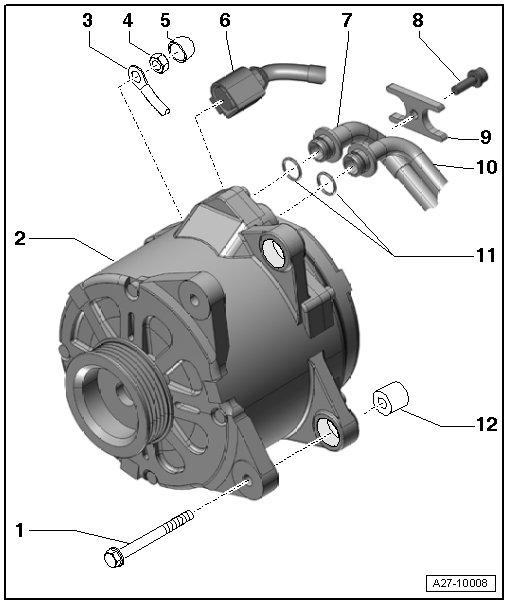

Generator Assembly Overview





1 Screw

• 23 Nm

2 Generator

• Removing and installing

• 4.2L FSI, refer to => [ Generator ] Generator

• Vehicles with 5.2L FSI, refer to => [ Generator ] Generator

3 Terminal 30/B+

4 Nut

• 15 Nm

5 Cap

6 Electrical Connector

7 Coolant Return Pipe

8 Screw

• 9 Nm

9 Retaining Plate

• For the coolant pipes

10 Coolant Supply Pipe

11 O-Rings

• Replace

12 Bushing

• Because the clamping force of a tight socket is too low despite the correct torque, loosen sockets
