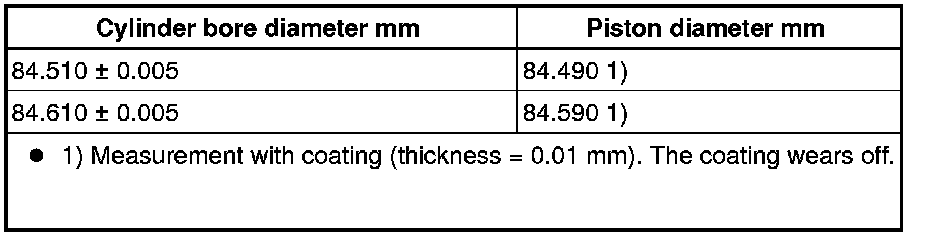

Piston and Cylinder Dimensions

Piston and Cylinder Dimensions

Matching pistons are allocated to the different manufacturing stages of the cylinder block.
