EVAP Canister and Leak Detection System Assembly Overview

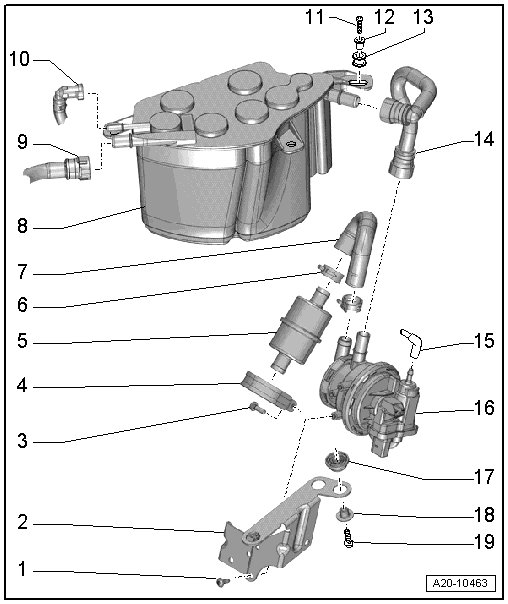

EVAP Canister and Leak Detection System Assembly Overview





1 Bolt

• 1.25 Nm

• 3 pieces

2 Bracket

3 Bolt

• 8 Nm

4 Bracket

5 Air Filter Housing

• for Leak detection pump (V144)

6 Clamp

7 Connecting Hose

8 EVAP Canister

• Installed location: under the right engine compartment trim

• Removing and installing, refer to => [ EVAP Canister ] EVAP Canister

9 Ventilation Line to the Fuel Tank Chamber

• To disconnect, press release button on connection piece

10 Vent Line

• To Evaporative Emission (EVAP) Canister Purge Regulator Valve (N80)

• To disconnect, press release button on connection piece

11 Bolt

• 3 pieces

• 8 Nm

12 Bushing

13 Rubber Grommet

14 Connecting Line

• To disconnect, press release button on connection piece

15 Vacuum Line

• To engine

16 Leak Detection Pump (V144)

• Installed location: under the wheel housing liner in right rear wheel housing

• Removing and installing, refer to => [ Leak Detection Pump ] Leak Detection Pump

17 Rubber Bushing

18 Bushing

19 Bolt

• 8 Nm

• 3 pieces
