Exhaust Flap Vacuum Diaphragm, Checking

Exhaust Flap Vacuum Diaphragm, Checking

Special tools, testers and auxiliary items required

• Hand Vacuum Pump (VAS 6213)

Procedure

- Install protective body covers. Refer to => [ Protective Body Covers, Installing ] Protective Body Covers, Installing.

- Remove the right engine compartment trim - 3 -.

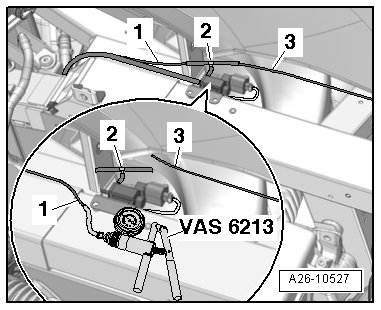

- Remove the vacuum hose - 1 - to the left - 3 - and right exhaust flap vacuum actuators from the T-connector - 2 -.





- Connect the Hand Vacuum Pump (VAS 6213) to the affected vacuum hose.

- Run the hand vacuum pump to generate a vacuum.

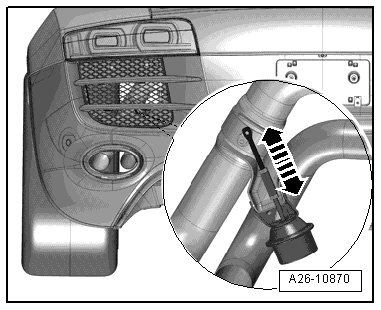

• The linkage must move into the vacuum diaphragm - arrow -.





- Vent hand vacuum pump.

• The linkage must move out of the vacuum diaphragm - arrow -.

- If the linkage does not move, check the linkage to make sure it is not stuck and check the vacuum diaphragm for leaks.

Assembly is in reverse order of removal, note the following:

- Install the engine compartment trim.
