Tire Pressure Module: Service and Repair

Tire Pressure Monitoring Control Module

Removing

The tire pressure monitoring control module (J502) is behind the rear shelf (coupe) or bulkhead trim (Spyder) on the left vehicle side.

Before removing control module, read out code using Guided Fault Finding in Replace control module function.

Relates to Coupe

- Remove the rear shelf.

Relates to the Spyder

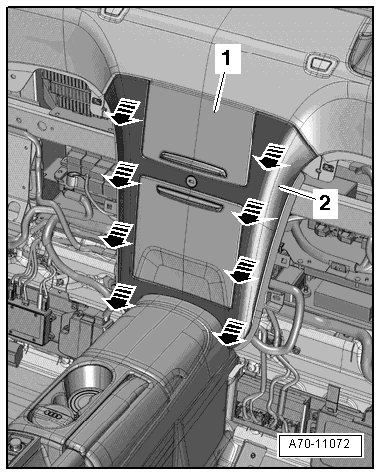

- Remove the left and right bulkhead trim - 1 -.

- Remove cover - 2 -.





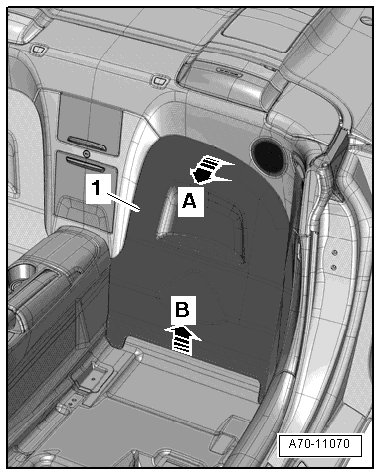

- Remove the rear storage compartment.





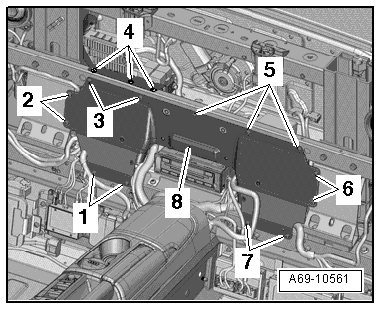

- Remove the front control module cover.





Continuation for All

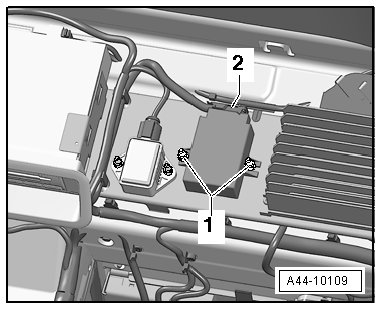

- Remove nuts - 1 -.

- Disconnect connector - 2 - and remove control module.

Installing

Installation is performed in the reverse order of removal.

- If Tire Pressure Monitoring Control Module (J502) is replaced, system must be coded. Refer to => [ Control Module Access, Replacing or Coding with VAS 5051B ] Control Module Access, Replacing or Coding With VAS 5051B.
