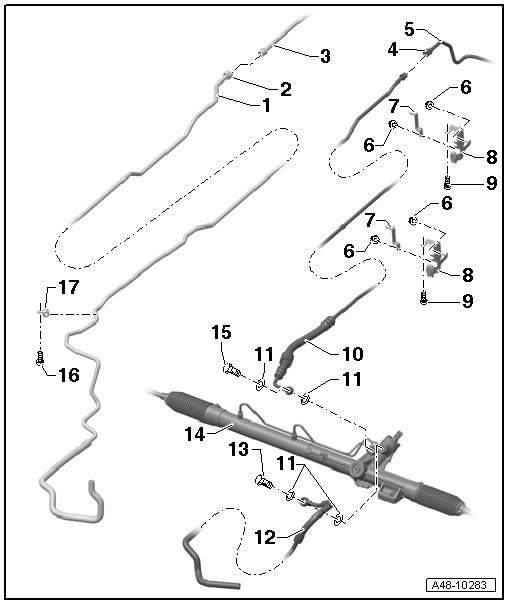

Center Lines and Hoses Assembly Overview

Center Lines and Hoses Assembly Overview





1 Return Line, Front Section

• From the hydraulic oil cooler to the reservoir.

• Note location on hydraulic oil cooler. Refer to => [ Center Lines and Hoses, Assembling ] Center Lines and Hoses, Assembling.

• Note the installation location on the threaded connection. Refer to => [ Center Lines and Hoses, Assembling ] Center Lines and Hoses, Assembling.

• Installation location on the body, refer to => [ Center Lines and Hoses, Assembling ] Center Lines and Hoses, Assembling.

2 Union Nut

• 40 Nm

3 Return Line, Rear Section

• From the hydraulic oil cooler to the reservoir.

• Note location on reservoir. Refer to => [ Installation Location of Suction
Line and Return Line to Reservoir ] Center Lines and Hoses, Assembling.

• Note the installation location on the threaded connection. Refer to => [ Installation Location on the
Threaded Connection ] Center Lines and Hoses, Assembling.

4 Union Nut

• 40 Nm

5 Pressure Line, Center Section

• From the power steering pump to the power steering gear.

• Note the installation location on the threaded connection. Refer to => [ Installation Location on the
Threaded Connection ] Center Lines and Hoses, Assembling.

6 Nut

• 4.5 Nm

7 Retaining Tab

8 Bracket

9 Bolt

• 8 Nm

10 Pressure Line, Front Section

• From the power steering pump to the power steering gear.

• Note the installation location on the threaded connection. Refer to => [ Installation Location on the
Threaded Connection ] Center Lines and Hoses, Assembling.

• Note the installation location on the power steering gear. Refer to => [ Line Installation Location
on the Steering Gear ] Center Lines and Hoses, Assembling.

11 Seal

• Always replace after removal.

12 Return Line

• From the power steering gear to the hydraulic oil cooler.

• Note the installation location on the steering gear. Refer to => [ Line Installation Location
on the Steering Gear ] Center Lines and Hoses, Assembling.

• Note location on hydraulic oil cooler. Refer to => [ Installation Location on the
Hydraulic Oil Cooler ] Center Lines and Hoses, Assembling.

• Installation location on the longitudinal member, refer to => [ Front Lines and Hoses, Assembling ] Front Lines and Hoses, Assembling

13 Banjo Bolt

• Always replace after removal.

• 47 Nm

14 Power Steering Gear

• Removing and installing, refer to => [ Power Steering Gear ] Power Steering Gear.

• Bleed the steering. Refer to => [ Steering System, Bleeding after Replacing ] Service and Repair.

• Check hydraulic fluid level. Refer to => [ Power Steering, Checking Fluid Level ] Power Steering, Checking Fluid Level.

• Steering system, checking for leaks. Refer to => [ Steering System, Checking for Leaks ] Steering System, Checking For Leaks.

15 Banjo Bolt

• Always replace after removal.

• 35 Nm

16 Bolt

• 8 Nm

17 Clamp
