Power Steering Fluid: Testing and Inspection

Power Steering Fluid, Checking

- With engine not running, move front wheels in straight-ahead position.

Cold fluid (approximately 68°F (20°C)):

- Remove cover.

- Clean dipstick with clean cloth.

- Screw cap on hand-tight and remove again.

• Screw cap fully in to get an accurate fluid level reading.

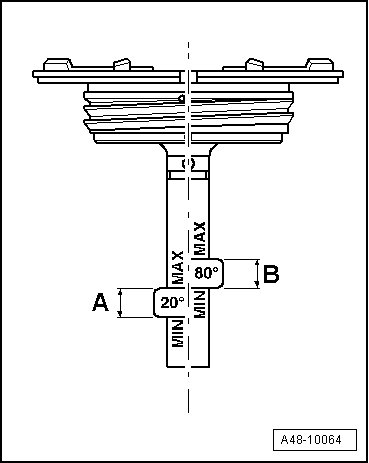

- Check fluid level: Fluid level must be in - A - range.





Warm fluid (approximately 176 °F (80°C)):

- Remove cover.

- Clean dipstick with clean cloth.

- Screw cap on hand-tight and remove again.

• Screw cap fully in to get an accurate fluid level reading.

- Check fluid level: The fluid level must be in the - B - range.





• If fluid level is above specified range, fluid must be extracted off.

• If the fluid level is below the specified level, check the power steering system for leaks. It is not sufficient just to add fluid.

• Do not use power steering fluid that has drained out.
