Engine Oil: Testing and Inspection

Engine Oil Level, Checking

- Follow these steps in sequential order.

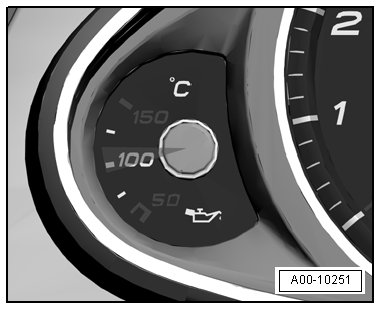

• Run the engine until the instrument cluster shows an engine oil temperature of 212 ° to 230 °F (100 °C to 110 °C) (hatched area).

• Place the vehicle in a horizontal position.

• Run the warm engine in idle approximately two minutes.

• Stop the engine and check the oil level after approximately two minutes.

• Add engine oil if necessary.

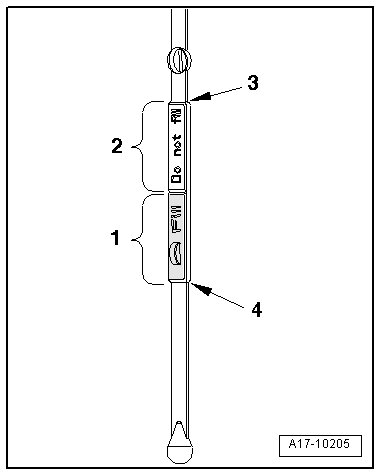

• The oil level is in the "Do not fill" - 2 - range. Do not add any more oil.

• The oil level is in the "Fill" - 1 - range. Add more oil.

• Fill with oil until the oil level reaches the "Do not Fill" range - 2 -.

• 1 mm on the dipstick corresponds to 0.04 liters of oil. Determine the amount to add using the measurement.
