Drive Plate With Roller Bearing

Drive Plate with Roller Bearing

Removing





- Remove the drive plate from compressor shaft, refer to => [ Drive Plate Protection ]. Drive Plate Protection

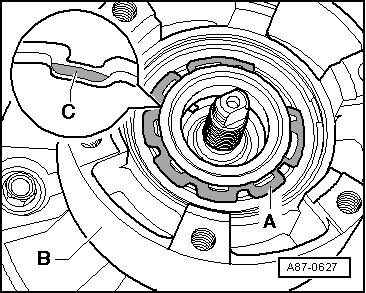

- Remove circlip - A -.

- Remove drive plate - B -.

Installing

• Replace circlip - A -.

- Clean the A/C compressor flange before sliding on drive plate.

- When installing the circlip - A -, note that it cannot be bent open more than is necessary for installation.

- Insert circlip - A - on correct side, the side with beveled insertion edge - C - faces away from A/C compressor (install flat side facing compressor).
