Auxiliary Input / Output Jack, Entertainment System

External Audio Source Connectors

AMI (Audi Music Interface)

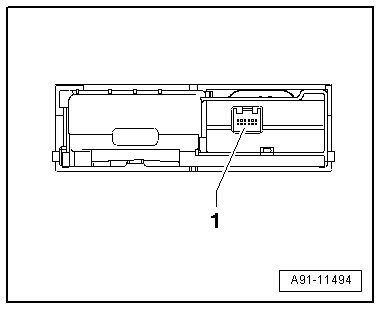

1. 12-pin connector (T12l)

• Unlisted connector terminals are not used.

1 - Multi-Pin Connector,12-pin (T12l)





1 Terminal 31
2 CAN-Bus Low (Infotainment)
4 LF - right to the radio/Navigation System With CD Drive Control Module (J401)
7 Terminal 30
8 CAN-Bus High (Infotainment)
9 LF - left to the radio/navigation system with CD drive control module
10 LF - ground to the radio/navigation system with CD drive control module

AUX IN

• Unlisted connector terminals are not used.

Multi-Pin Connector, 4-pin





1. LF - ground to the radio/Navigation System With CD Drive Control Module (J401)

2. LF - right to the radio/navigation system with CD drive control module

3. LF - left to the radio/navigation system with CD drive control module
