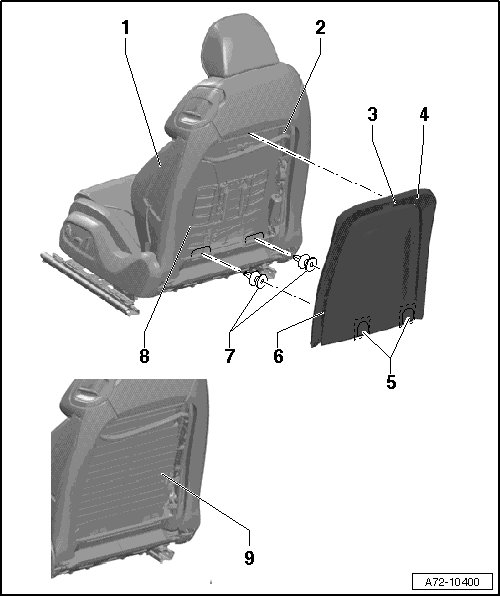

Backrest Cover Assembly Overview

Backrest Cover Assembly Overview





1 Seat

2 Easy Entry Release

3 Tab

• formed to backrest cover

4 Backrest Cover

• Removing and installing, refer to => [ Backrest Cover ] All Seats

5 Bracket

• Quantity: 2

• formed to backrest cover

6 Groove

• for engaging backrest cover

7 Clip

• Quantity: 2

• Clipped into backrest cover

• Replace if damaged

8 Four-way Lumbar Support

• Assembly overview, refer to => [ Four-Way Lumbar Support Assembly Overview ] Four-Way Lumbar Support Assembly Overview

• Removing and installing, refer to => [ Four-Way Lumbar Support ] All Seats

9 Spring Mat

• Assembly overview, refer to => [ Spring Mat Assembly Overview ] Manual Seats

• Removing and installing, refer to => [ Spring Mat ] Manual Seats
