Top Cover For Control Modules

Top Cover for Control Modules

Removal





- Removing the rollover protection crossbrace connection => [ Rollover Protection Crossbrace Connection ]. Rollover Protection Crossbrace Connection

- Disconnect and expose the electrical harness connector for the Tire Pressure Monitoring Control Module (J502).

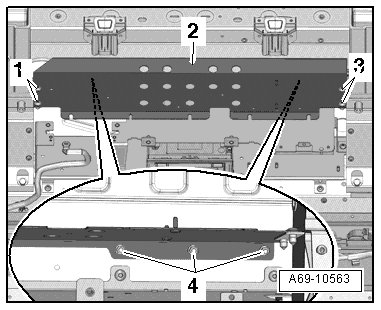

- Unscrew screws - 1, 3 - and nuts - 4 -.

- Remove top cover - 2 - for control modules.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Rollover Protection Crossbrace Connection Assembly Overview ] Procedures.
