Rollover Protection
=> [ Rollover Protection Crossbrace Connection Assembly Overview ]
=> [ Rollover Protection Assembly Overview ]
=> [ Deployed Rollover Protection, Returning to Stored Position ]

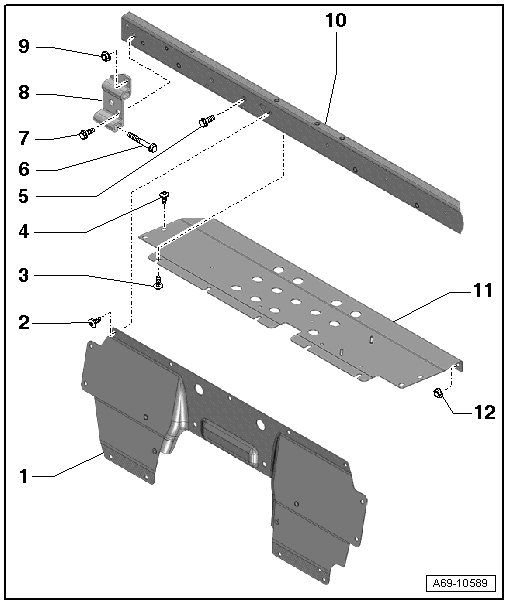

Rollover Protection Crossbrace Connection Assembly Overview
1 Front Cover
• For control modules
• Removing and installing, refer to => [ Front Cover for Control Modules ] Removal and Replacement
2 Bolt
• Quantity: 13
• 8 Nm
3 Bolt
• Quantity: 5
• 8 Nm
4 Bolt
• Quantity: 4
• 20 Nm
5 Bolt
• Quantity: 4
• 23 Nm
6 Bolt
• Quantity: 4
• 23 Nm
7 Bolt
• Quantity: 4
• 23 Nm
8 Bracket
• Quantity: 2
9 Nut
• Quantity: 2
• 23 Nm
10 Crossbrace
• Rollover protection connection
• Removing and installing, refer to => [ Rollover Protection Crossbrace Connection ] Removal and Replacement
11 Upper Cover
• For control modules
• Removing and installing, refer to => [ Top Cover for Control Modules ] Removal and Replacement
12 Nut
• Quantity: 5
• 8 Nm

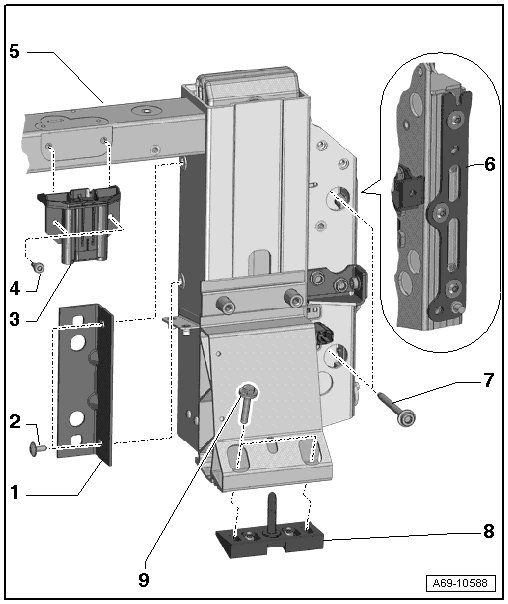

Rollover Protection Assembly Overview
CAUTION!
• Loosen only those screws shown in the illustration.
1 Bracket
• For rear window frame
• Quantity: 2
2 Bolt
• Quantity: 4
3 Bracket
• For wind deflector
• Quantity: 2
• Removing and installing, refer to => [ Wind Deflector Bracket ] Wind Deflector
4 Bolt
• Quantity: 8
• Tightening specification 2.5 Nm
5 Rollover Protection
• Removing and installing, refer to => [ Rollover Protection ] Removal and Replacement
6 Flange Plate
• For the convertible top frame
CAUTION!
The position of the flange plate is calibrated and may not be changed. Do not loosen the screws.
7 Bolt
• Quantity: 4
• If it was removed because of an accident, replace the screw.
• 55 Nm
8 Securing Plate
• For rollover protection
CAUTION!
The position of the securing plate is calibrated in the vehicle and may not be changed. Do not loosen the screws.
9 Bolt
• Quantity: 4
• If it was removed because of an accident, replace the screw.
• 20 Nm

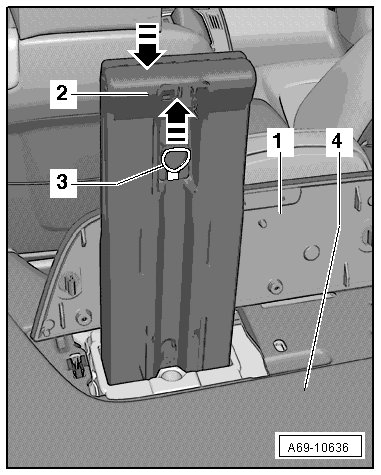

Deployed Rollover Protection, Returning to Stored Position
- Unlock driver or passenger side rollover protection - 2 - with red lock - 3 - and push the rollover bar back into its start position. The rollover protection must audibly engage.
• Ignore - 1 and 4 -.
