Outer Headlamp Bracket

Outer Headlamp Bracket

Removing





Proceed as follows:

- Remove headlamp.

- Remove bolts - arrows -.

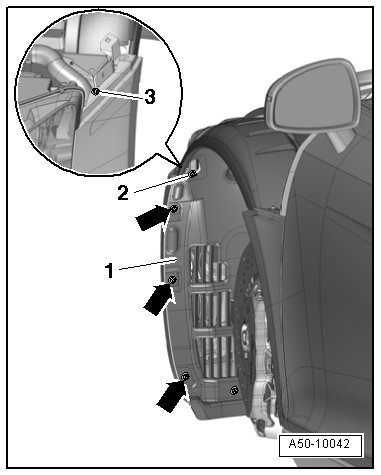

- Move the loosened part of the wheel housing liner - 1 - to the side.

- Remove bolts - 2 - and - 3 - on the bumper cover bracket.

- Remove the lid lock => [ Left and Right Lid Lock ] Left and Right Lid Lock.

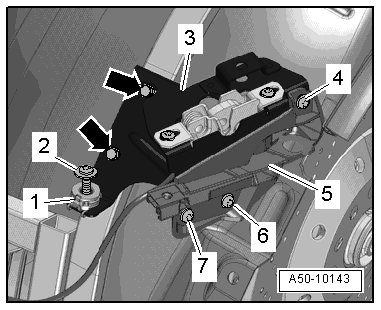

- Remove bolts - arrows -.

- Remove the outer headlamp bracket - 3 -.

- Remove bolts - 4, 6 and 7 - and the outer bumper cover bracket - 5 -.

- Remove the headlamp adjuster - 1 - by removing bolt - 2 -.

Installing

• Tightening specifications => [ Headlamp, Wheel Housing Liner, and Radiator Brackets Assembly Overview ] Headlamp, Wheel Housing Liner, and Radiator Brackets Assembly Overview, => [ Front Lid Lock and Positioning Motor Assembly Overview ] Front Lid Lock and Positioning Motor Assembly Overview.

Installation is reverse of removal.
