Inner Radiator Bracket

Inner Radiator Bracket

Removing





Proceed as follows:

- Remove the headlamp.

- Remove the radiator.

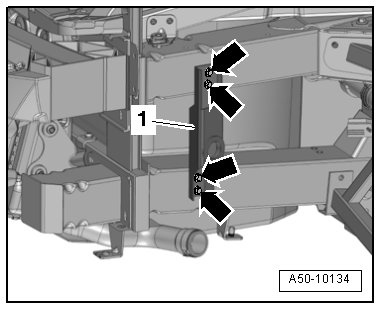

- Remove the bolts - arrows - and the inner radiator bracket - 1 -.

Installing

• Tightening specifications => [ Headlamp, Wheel Housing Liner, and Radiator Brackets Assembly Overview ] Headlamp, Wheel Housing Liner, and Radiator Brackets Assembly Overview.

Installation is reverse of removal.
