Front Crossmember

Front Crossmember

CAUTION!
Observe safety precautions.

Special tools, testers and auxiliary items required

• Single hand angle grinder (VAS 5167)

• Socket for flow drill bolts (VAS 6426) or (6426/1)

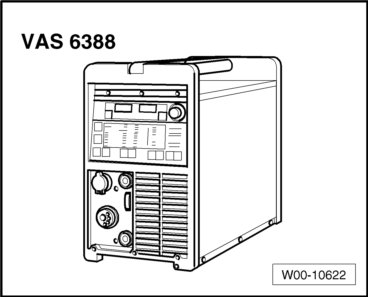

• Gas-shielded welder 250A

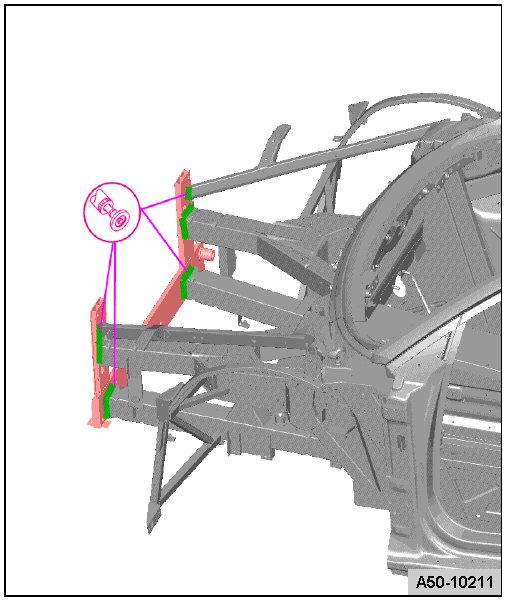

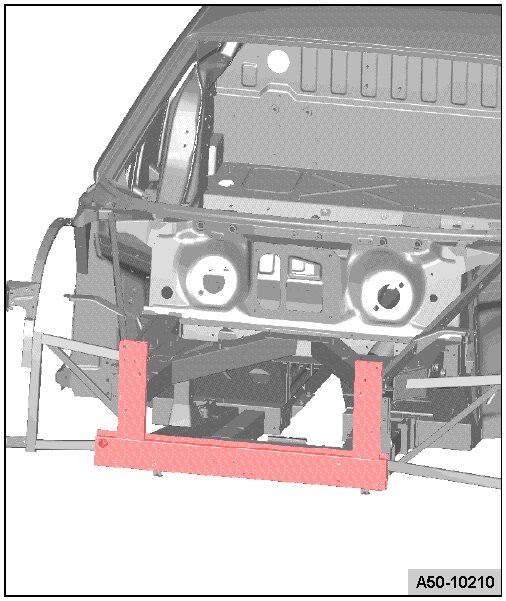

Separating areas

- Loosen the original joint using the single hand angle grinder (VAS 5167).

- Remove the remainder using the single hand angle grinder (VAS 5167).





- Loosen the original joint using the single hand angle grinder (VAS 5167).

- Remove the remainder using the single hand angle grinder (VAS 5167).

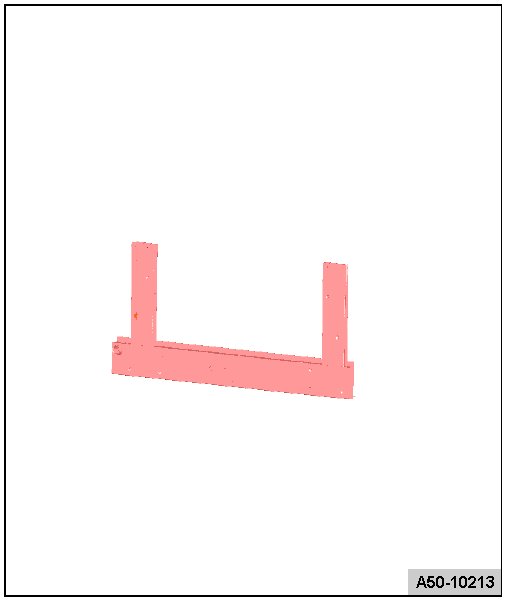

Replacement part

• Front crossmember

Preparing New Parts

- Prepare flange on body and new part for welding.

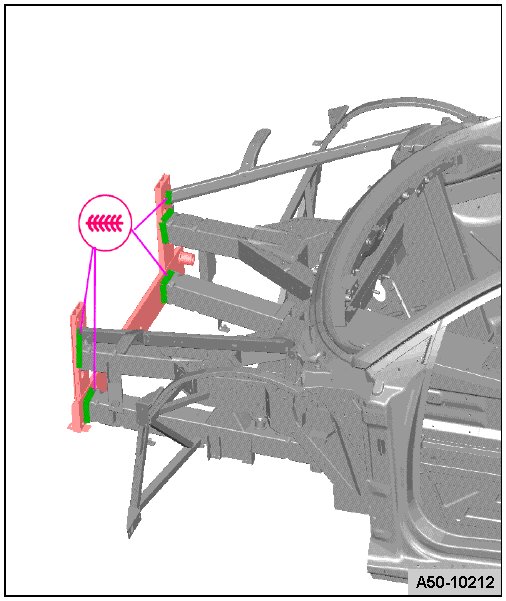

- Weld the crossmember with a SG continuous seam using the gas-shielded welder 250A.
