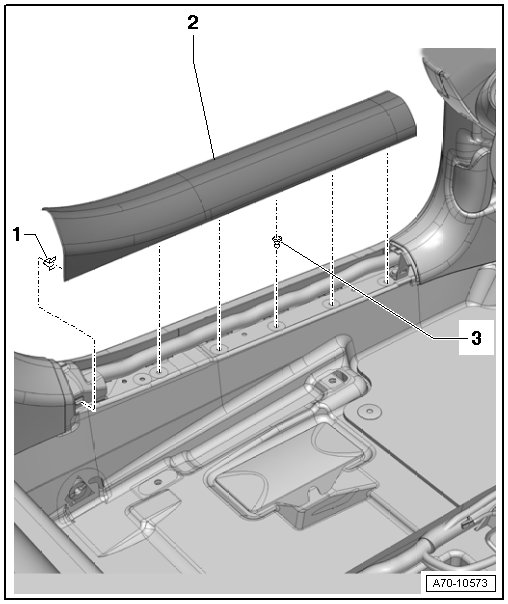

Sill Panel Trim Assembly Overview

Sill Panel Trim Assembly Overview





1 Retaining Clip

2 Sill Panel Strip

• Removing and installing, refer to => [ Sill Panel Trim ] Trim

3 Clip

• Quantity: 5

• Replace if damaged or deformed
