Storage Compartment Lid

Storage Compartment Lid

Removal





- Remove the center console storage compartment. Refer to => [ Ashtray ]. Ashtray

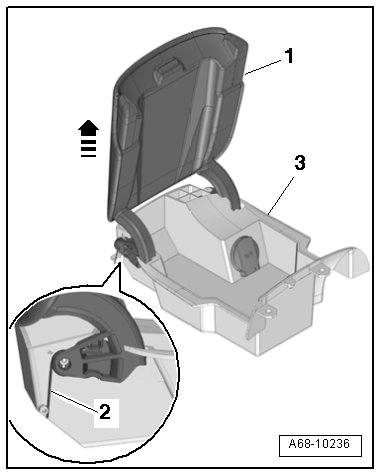

- Open the storage compartment lid - 1 - and disengage the springs - 2 - at the left and right of the compartment.

- Pull the storage compartment cover up - arrow - and remove it from the compartment - 3 -.

Installation

To install, perform the steps used in removal in reverse order.
