Center Console Cover

Center Console Cover

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)





Removal

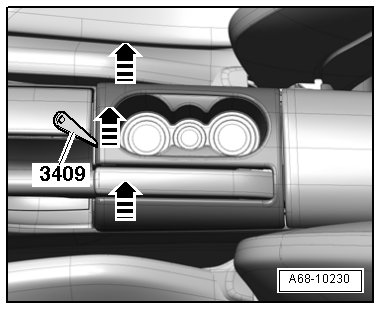

- Unclip the center console cover from the front of the center console - arrows - using a (3409).

- Disengage the center console cover at the back of the console and remove.

Installation

Installation is reverse of removal, but note the following:

- Make sure the cover engages audibly in the center console.
