Center Console Bracket

Center Console Bracket

Removal





- Remove the front center console. Refer to => [ Front Center Console ]. Front Center Console

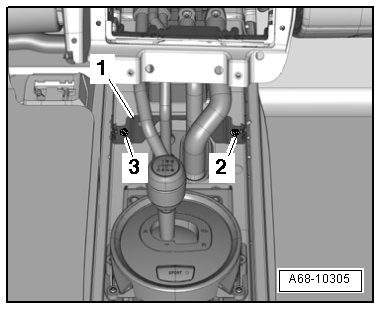

- Remove screws - 2 - and - 3 -.

- Remove the center console bracket - 1 - sideways toward the passenger side.

Installation

Installation is reverse of removal, but note the following:

- Align the bracket on the center console and tighten the bolts.

Tightening specifications, refer to => [ Center Console Assembly Overview ] Description and Operation.
