Front Cross-Member: Service and Repair

Crossmember on Front Final Drive

Special tools, testers and auxiliary items required

• Engine/Transmission Jack (V.A.G 1383 A)

Removing

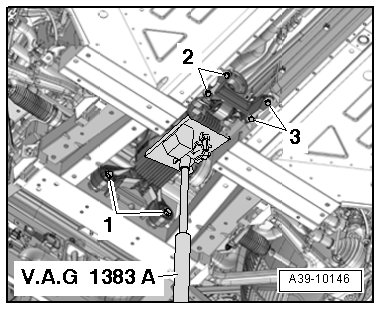

- Place the Engine/Transmission Jack (V.A.G 1383 A) under the front final drive and support it.

- Remove the bolts - 1 - on the front crossmember.





• Do not loosen items - 2 - and - 3 -.

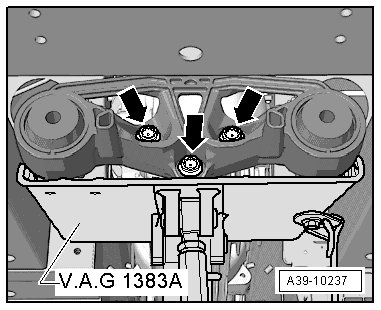

- Lower the front final drive evenly until the bolts - arrows - are accessible.





- Remove the bolts - arrows - and the crossmember.

Installing

• Tightening specification. Refer to => [ Front Final Drive Assembly Overview ] Description and Operation.

Install in reverse order, paying attention to the following:
