Standard Sound System, Digital Sound System Control Module

Standard Sound System, Digital Sound System Control Module

The Digital Sound System Control Module (J525) is located under the left side of the rear shelf.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove rear shelf.

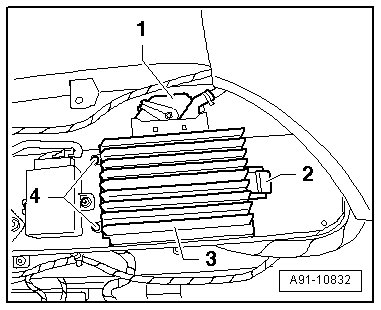

- Remove the bolts - 4 - on the digital sound system control module - 3 -.





- Tilt the digital sound system control module - 3 - out of the spring - 2 - and remove it from the rear shelf.

- Disconnect the electrical connectors - 1 - on digital sound system control module - 3 -.

Installing

- Install in reverse order.

Tightening Specifications, refer to => [ Sound System, Amplifier, Overview ] Sound Systems Overview.
