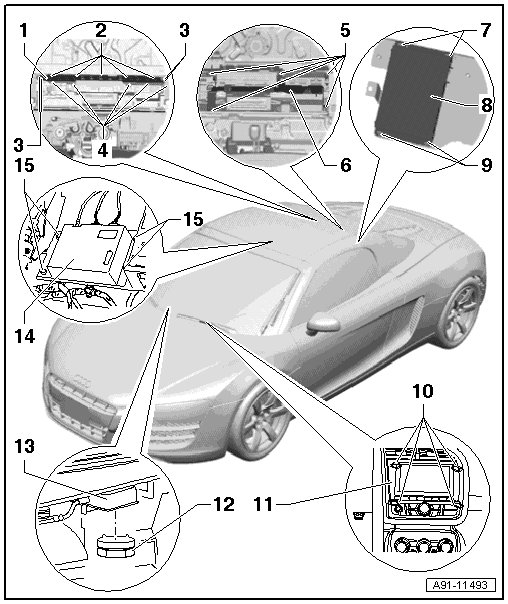

RNS-E System Overview

RNS-E System Overview





1 Upper Cover (Spyder)

2 Nut

• 8 Nm.

3 Screw

• 20 Nm.

4 Screw

• 8 Nm.

5 Screw

• 9 Nm.

6 Bracket (Spyder)

7 Nut

• 6.5 Nm.

8 Satellite Radio (R146) (Spyder)

9 Nut

• 6.5 Nm.

10 Radio Removal Tool (T10057)

11 Navigation System with CD Drive Control Module (J401)

12 Nut

• 2 Nm

13 Navigation System Antenna (R50) (GPS)

14 Satellite Radio (R146) (Coupe)

15 Screw

• 6 Nm.
